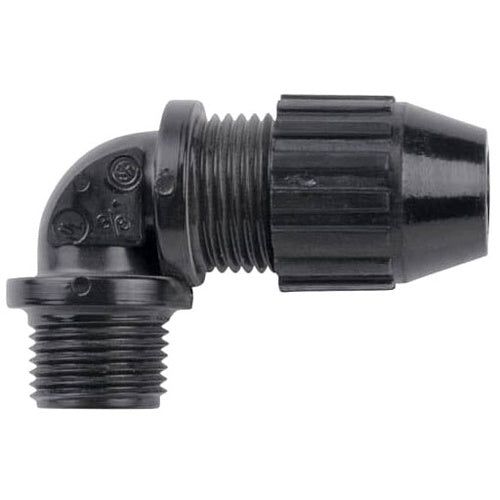

T&B 2686 1" 90D Liquidtight Cord Connector .77-.895 Nylon

Overview

T&B 2686 1" 90D Liquidtight Cord Connector .77-.895 Nylon

Product Specifications

• UPC: 78621002686
• Application: Hazardous Location
• Additional Information: Construction Feature Liquidtight, Strain Relief, Corrosion Resistant; Applicable Standard Federal Specification A-A-50552, A-A-50553, WC-586; Operating Temperature -34 to 105 Deg C
• Catalog Number: 2686
• Brand Name: Black Beauty[R]
• Type: 90 Deg
• Thread Size: 1 Inch
• Material: Molded Black Nylon Body, Molded Thermoplastic Gland and Segmented Chuck, Molded Neoprene Bushing
• Cord Size: 0.77 to 0.895 Inch
• Size: 3.2 Inch Dia x 1.89 Inch L
• Approval: UL, CSA
• Catalog Description: LIQUIDTIGHT CORD CONNECTOR, 1 INCH, 90 DEGREE BEND, CORD RANGE 0.770 TO 0.895 INCH, MEETS COAST GUARD CG293, NYLON, BLACK
• Category: Cable & Cord Grips
• Full Technical Description: 90 Deg Type; Molded Black Nylon Body, Molded Thermoplastic Gland and Segmented Chuck, Molded Neoprene Bushing Material; 3.2 Inch Dia X 1.89 Inch L Size; UL, CSA Approval; Hazardous Location Application; 1 Inch Thread Size; 0.77 to 0.895 Inch Cord Size; Black BEAUTY[R] Brand; Construction Feature Liquidtight, Strain Relief, Corrosion Resistant; Applicable Standard Federal Specification A-A-50552, A-A-50553, WC-586; Operating Temperature -34 to 105 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210026862
• SKU Name: t&b 2686
