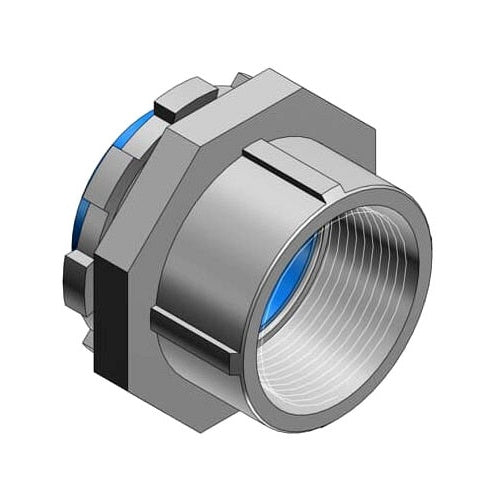

T&B 374 1-1/2" Bullet Hub

Overview

T&B 374 1-1/2" Bullet Hub

Product Specifications

• UPC: 78621000374
• Material: Zinc Electroplated with Chromate Coated Malleable Iron (Body), Zinc Electroplated with Chromate Coated Hardened Steel (Locknut/Screw), Buna-N (O-Ring)
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Maximum Wall Thickness 5/16 Inch; Temperature Rating 105 Deg C; Application Hazardous Location; Applicable Standard Federal Specification A-A-50553/H-28, JIC EGP 1, JIC EMP 1, A-A-50553, NEMA FB-1, NFPA 70
• Catalog Number: 374
• Brand Name: Bullet[R]
• Type: Bulkhead, Tapered Female Threaded
• Throat Type: Nylon Insulated
• Trade Size: 1-1/2 Inch
• Size: 3-3/32 Inch Diameter x 1-5/8 Inch Length
• Constructional Feature: Rain/Dust/Water Tight
• Ground Type: Locknut/Grounding Screw
• Catalog Description: 1-1/2 INCH HUB CONNECTOR, MALLEABLE IRON ELECTRO ZINC PLATED, NYLON INSULATED FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Bulkhead, Tapered Female Threaded Type; Zinc Electroplated With Chromate Coated Malleable Iron (Body), Zinc Electroplated With Chromate Coated Hardened Steel (Locknut/Screw), Buna-N (O-ring) Material; 3-3/32 Inch Diameter X 1-5/8 Inch Length Size; Imc/Rigid Conduit Used on; UL, CSA Approval; Locknut/Grounding Screw; 1-1/2 Inch Trade Size; Rain/Dust/Water Tight; Nylon Insulated Throat Type; BULLET[R] Brand; Maximum Wall Thickness 5/16 Inch; Temperature Rating 105 Deg C; Application Hazardous Location; Applicable Standard Federal Specification A-A-50553/H-28, JIC EGP 1, JIC EMP 1, A-A-50553, NEMA FB-1, NFPA 70
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 786210003740
• SKU Name: t&b 374

Resources

• Manufacturer Spec Sheet
