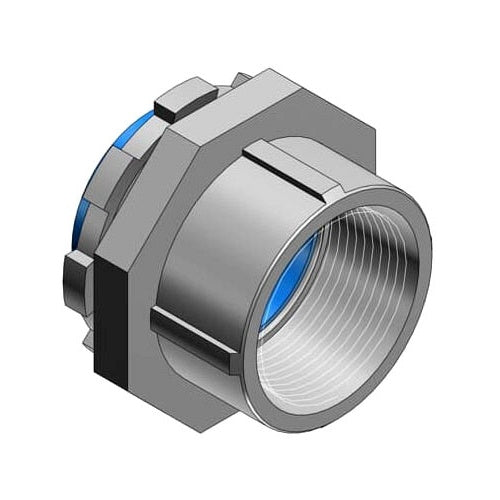

T&B 376 2-1/2" Insulated Bullet Conduit Hub

Overview

T&B 376 2-1/2" Insulated Bullet Conduit Hub

Product Specifications

• UPC: 78621000376
• Approval: UL 514B, CSA C22.2
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NFPA 70, JIC EGP1, JIC EMP 1, A-A-50553; Enclosure NEMA FB-1; Maximum Wall Thickness 3/8 Inch; Temperature Rating 105 Deg C
• Catalog Number: 376
• Type: Bulkhead, Tapered Female Threaded
• Throat Type: Nylon Insulated
• Trade Size: 2-1/2 Inch
• Size: 4-1/8 Inch Dia
• Constructional Feature: Dusttight, Raintight, Watertight, Hazardous Location
• Ground Type: Locknut Bonding/Grounding Screw
• Material: Zinc Electroplated Chromate Coated Malleable Iron Hub, Zinc Electroplated Chromate Coated Malleable Iron Locknut/Screw, Neoprene O-Ring
• Catalog Description: 2-1/2 INCH HUB CONNECTOR, MALLEABLE IRON ELECTRO ZINC PLATED, NYLON INSULATED FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Bulkhead, Tapered Female Threaded Type; Zinc Electroplated Chromate Coated Malleable Iron Hub, Zinc Electroplated Chromate Coated Malleable Iron Locknut/Screw, Neoprene O-ring Material; 4-1/8 Inch Dia Size; Rigid Conduit/Imc Used on; UL 514B, CSA C22.2 Approval; Locknut Bonding/Grounding Screw; 2-1/2 Inch Trade Size; Dusttight, Raintight, Watertight, Hazardous Location; Nylon Insulated Throat Type; BULLET[R] Brand; Applicable Standard NFPA 70, JIC EGP1, JIC EMP 1, A-A-50553; Enclosure NEMA FB-1; Maximum Wall Thickness 3/8 Inch; Temperature Rating 105 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 786210003764
• SKU Name: t&b 376

Resources

• Manufacturer Spec Sheet
