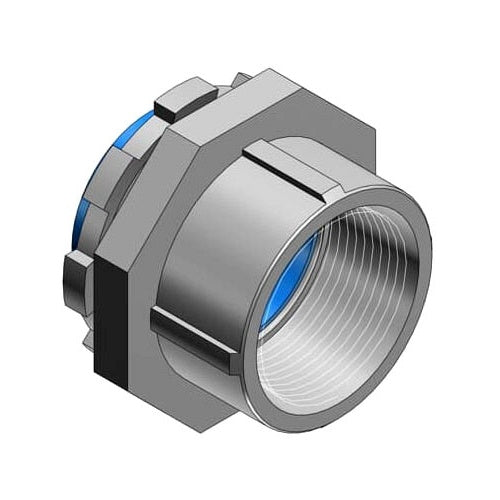

T&B 382-TB 6" Insulated Bullet Conduit Hub

Overview

T&B 382-TB 6" Insulated Bullet Conduit Hub

Product Specifications

• UPC: 78621000382
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Temperature Rating 105 Deg C; Maximum Wall Thickness 1/2 Inch
• Catalog Number: 382-TB
• Type: Threaded Hub
• Throat Type: Nylon Insulated
• Trade Size: 6 Inch
• Diameter: 9-3/16 Inch
• Material: Electro Zinc Plated Malleable Iron Body, Neoprene O-Ring
• Constructional Feature: Watertight, Dusttight
• Standard Package: 1
• Catalog Description: 6 INCH HUB CONNECTOR, MALLEABLE IRON ELECTRO ZINC PLATED, NYLON INSULATED FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Hub Type; Electro Zinc Plated Malleable Iron Body, Neoprene O-ring Material; Imc/Rigid Conduit Used on; UL, CSA Approval; 9-3/16 Inch Diameter; 1 Standard Package; 6 Inch Trade Size; Watertight, Dusttight; Nylon Insulated Throat Type; BULLET[R] Brand; Temperature Rating 105 Deg C; Maximum Wall Thickness 1/2 Inch
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210003825
• SKU Name: t&b 382tb

Resources

• Manufacturer Spec Sheet
