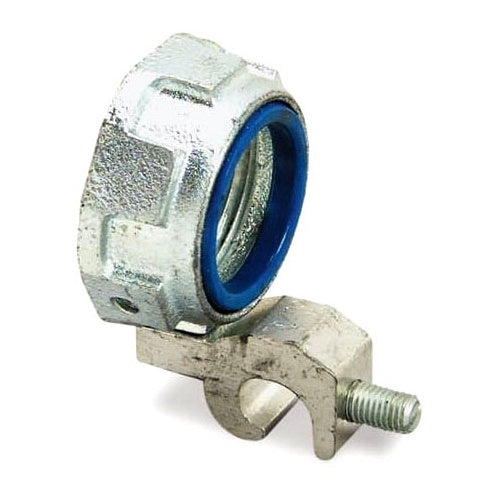

T&B 3878 3-1/2" Insulated Ground Bushing W/Range 14-4

Overview

T&B 3878 3-1/2" Insulated Ground Bushing W/Range 14-4

Product Specifications

• UPC: 78621003878
• Diameter: 4.781 INCH
• Height: 0.975 INCH
• Material: ELECTRO ZINC PLATED CAST MALLEABLE IRON
• Standard Package: 5
• Approval: UL, CSA
• Used On: RIGID CONDUIT/IMC
• Additional Information: INSULATOR MATERIAL THERMOPLASTIC; THROAT SIZE 3.193 INCH; TEMPERATURE RATING 150 DEG C
• Catalog Number: 3878
• Model: 3870
• Type: THREADED, SET SCREW
• Trade Size: 3-1/2 INCH
• Wire Size: 14 TO 4 AWG
• Lug Type: LAY-IN, TIN PLATED ALUMINUM
• Conductor Material: COPPER/ALUMINUM
• Throat Type: THERMOPLASTIC INSULATED
• Catalog Description: 3-1/2 INCH THREADED INSULATED GROUNDING BUSHING, IRON, ELECTRO ZINC PLATED, WIRE RANGE 14 TO 4, THERMOPLASTIC INSULATOR FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded, Set Screw Type; Electro Zinc Plated Cast Malleable Iron Material; 0.975 Inch; Rigid Conduit/Imc Used on; 14 to 4 AWG Wire Size; Copper/Aluminum Conductor Material; UL, CSA Approval; 4.781 Inch Diameter; 5 Standard Package; 3-1/2 Inch Trade Size; Thermoplastic Insulated Throat Type; Lay-in, Tin Plated Aluminum Lug Type; Insulator Material Thermoplastic; Throat Size 3.193 Inch; Temperature Rating 150 Deg C; 3870 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210038780
• SKU Name: t&b 3878
