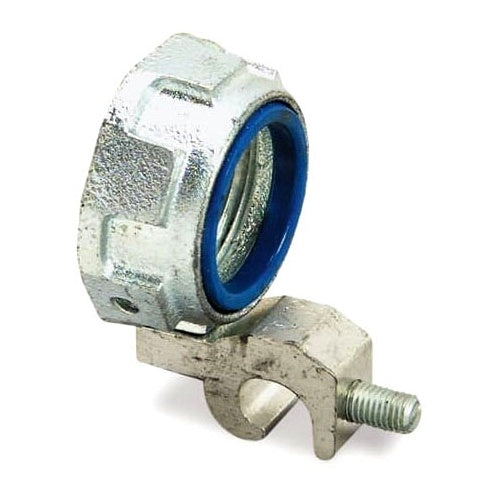

T&B 3883 1-1/4" Insulated Ground Bushing W/8-2/0 Range

Overview

T&B 3883 1-1/4" Insulated Ground Bushing W/8-2/0 Range

Product Specifications

• UPC: 78621003883
• Diameter: 2.19 Inch
• Height: 0.735 Inch
• Material: Electro Zinc Plated Cast Malleable Iron
• Standard Package: 50 per Outer Pack
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Insulator Material Thermoplastic; Throat Size 1.242 Inch; Temperature Rating 150 Deg C
• Catalog Number: 3883
• Brand Name: T&B
• Type: Threaded, Set Screw
• Trade Size: 1-1/4 Inch
• Wire Size: 8 to 2/0 AWG
• Lug Type: Lay-In, Tin Plated Aluminum
• Conductor Material: Copper/Aluminum
• Throat Type: Insulated
• Catalog Description: 1-1/4 INCH THREADED INSULATED GROUNDING BUSHING, IRON, ELECTRO ZINC PLATED, WIRE RANGE 8 TO 2/0, THERMOPLASTIC INSULATOR FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded, Set Screw Type; Electro Zinc Plated Cast Malleable Iron Material; 0.735 Inch; Imc/Rigid Conduit Used on; 8 to 2/0 AWG Wire Size; Copper/Aluminum Conductor Material; UL, CSA Approval; 2.19 Inch Diameter; 50 Per Outer Pack Standard Package; 1-1/4 Inch Trade Size; Insulated Throat Type; Lay-in, Tin Plated Aluminum Lug Type; Insulator Material Thermoplastic; Throat Size 1.242 Inch; Temperature Rating 150 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210038834
• SKU Name: t&b 3883

Resources

• Manufacturer Spec Sheet
