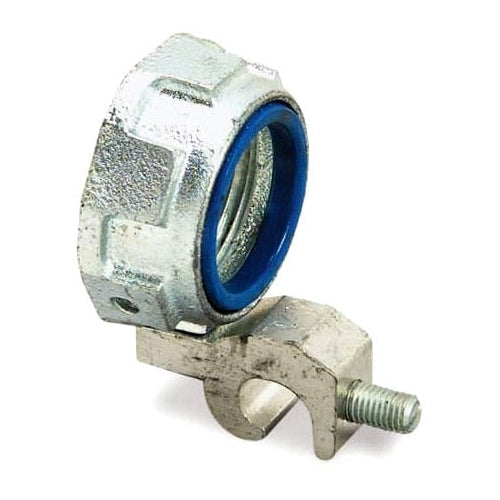

T&B 3995 3-1/2" Insulated Ground Bushing W/Range 6-4/0

Overview

T&B 3995 3-1/2" Insulated Ground Bushing W/Range 6-4/0

Product Specifications

• UPC: 78621003995
• Height: 0.975 Inch
• Material: Electro Zinc Plated Cast Malleable Iron (Body), Thermoplastic (Insulator)
• Standard Package: 5 per Outer Pack
• Approval: CSA, UL (Canada and US)
• Used On: IMC/Rigid Conduit
• Additional Information: Throat Diameter 3.193 Inch; Lug Length 2.23 Inch; Swing Radius 3.23 Inch
• Catalog Number: 3995
• Type: Threaded, Set Screw
• Trade Size: 3-1/2 Inch
• Wire Size: 6 to 4/0 AWG
• Lug Type: Lay-In, Tin Plated Aluminum
• Conductor Material: Aluminum/Copper
• Throat Type: Insulated
• Diameter: 4.781 Inch
• Catalog Description: 3-1/2 INCH THREADED INSULATED GROUNDING BUSHING, IRON, ELECTRO ZINC PLATED, WIRE RANGE 6 TO 4/0, THERMOPLASTIC INSULATOR FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded, Set Screw Type; Electro Zinc Plated Cast Malleable Iron (Body), Thermoplastic (Insulator) Material; 0.975 Inch; Imc/Rigid Conduit Used on; 6 to 4/0 AWG Wire Size; Aluminum/Copper Conductor Material; CSA, UL (Canada and Us) Approval; 4.781 Inch Diameter; 5 Per Outer Pack Standard Package; 3-1/2 Inch Trade Size; Insulated Throat Type; Lay-in, Tin Plated Aluminum Lug Type; Throat Diameter 3.193 Inch; Lug Length 2.23 Inch; Swing Radius 3.23 Inch
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210039954
• SKU Name: t&b 3995

Resources

• Manufacturer Spec Sheet
