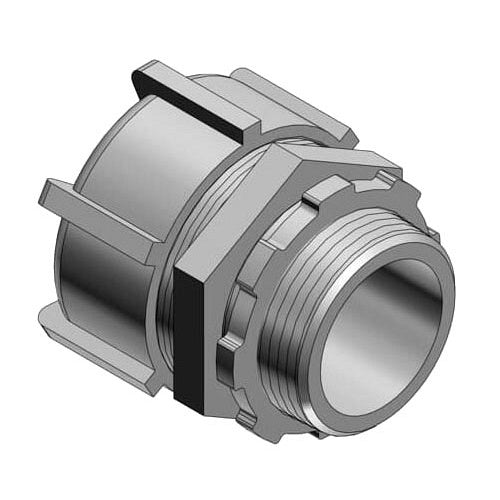

T&B 5232AL 1/2" Straight Liquidtight Non-Insulated Connector Aluminum

Overview

T&B 5232AL 1/2" Straight Liquidtight Non-Insulated Connector Aluminum

Product Specifications

• UPC: 78621080247
• Used On: Liquid Tight Flexible Metallic Conduit
• Additional Information: RoHS Compliant; Application Indoor/Outdoor, Industrial, Hazardous Location; Applicable Standard IEC/EN 61386-1, NEMA FB-1, A-A-50552
• Catalog Number: 5232AL
• Model: 5200AL
• Type: Straight
• Throat Type: Non-Insulated
• Trade Size: 1/2 Inch
• Material: Zinc Plated Chromate Coated Aluminum (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone), Aluminum Cast (Locknut)
• Standard Package: 100
• Approval: UL, CSA, CE
• Catalog Description: 1/2 INCH ALUMINUM LIQUIDTIGHT CONNECTOR, NON-INSULATED
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight, Threaded Type; Zinc Plated/Clear Chromate Coated Aluminum (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone), Aluminum Cast (Locknut) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 100 Standard Package; 1/2 Inch Trade Size; Non-Insulated Throat Type; RoHS Compliant; Diameter 1-3/8 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2; Application Indoor/Outdoor, Industrial/Commercial, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5200AL Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210802473
• SKU Name: t&b 5232al

Resources

• Manufacturer Spec Sheet
