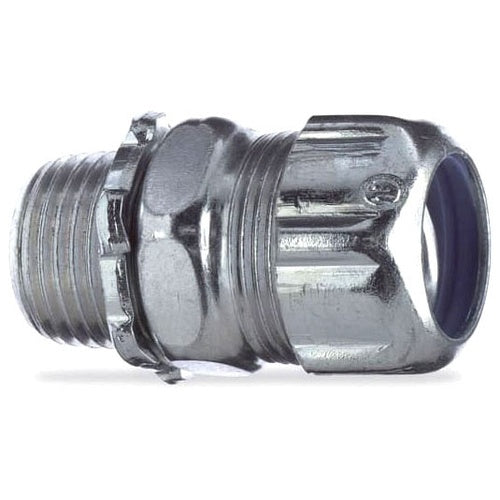

T&B 5233 3/4" Liquid-Tight Connector -Steel

Overview

T&B 5233 3/4" Liquid-Tight Connector -Steel

Product Specifications

• UPC: 78621005233
• Used On: Liquidtight Flexible Metallic Conduit
• Additional Information: Constructional Feature Water Tight/Oil Tight; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEMA FB-1, NFPA 70, Federal Specification A-A-50552
• Catalog Number: 5233
• Model: 5200
• Type: Straight
• Throat Type: Non-Insulated
• Trade Size: 3/4 Inch
• Material: Zinc Electroplated/Chromate Coating Steel (Body/Ground Cone), Thermoplastic (Sealing Ring/Insulator)
• Standard Package: 25 per Inner Pack, 50 per Outer Pack
• Approval: UL 514B, CSA C22.2, CE
• Catalog Description: LIQUIDTIGHT CONDUIT FITTING, STRAIGHT, STEEL, 3/4 INCH, NON-INSULATED STEEL
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight, Threaded Type; Zinc Electroplated/Chromate Coated Steel (Body), Thermoplastic Nylon (Sealing Ring/Insulator), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 50 Standard Package; 3/4 Inch Trade Size; Non-Insulated Throat Type; RoHS Compliant; Diameter 1-21/32 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5200 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210052335
• SKU Name: t&b 5233
