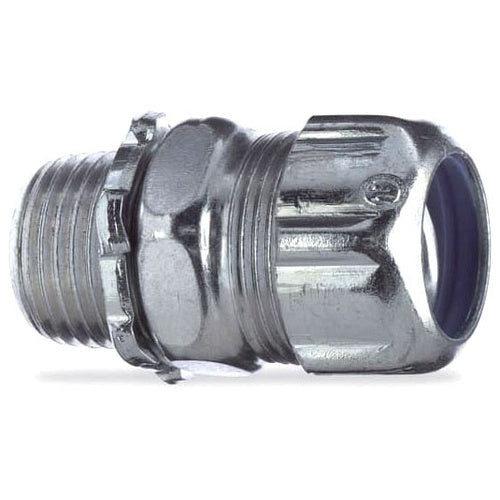

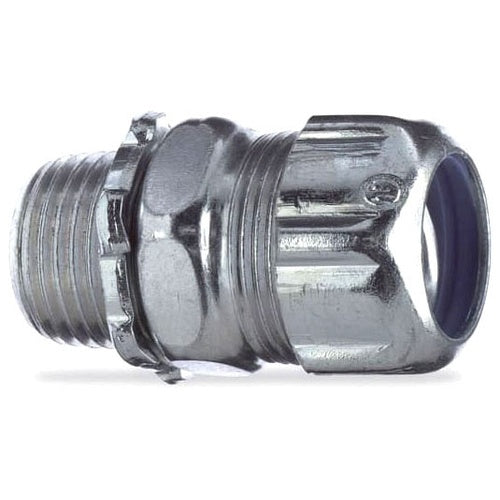

T&B 5236 1-1/2" Non-Insulated Liquidtight Connector Steel

Overview

T&B 5236 1-1/2" Non-Insulated Liquidtight Connector Steel

Product Specifications

• UPC: 78621005236
• Used On: Liquid Tight Flexible Metallic Conduit
• Additional Information: RoHS Compliant; Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard IEC/EN 61386-1, NEMA FB-1, NFPA 70, Federal Specification A-A-50552
• Catalog Number: 5236
• Model: 5200
• Type: Straight
• Throat Type: Non-Insulated
• Trade Size: 1-1/2 Inch
• Material: Zinc Electroplated Chromate Coated Malleable Iron (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone)
• Standard Package: 10
• Approval: UL, CSA, CE
• Catalog Description: LIQUIDTIGHT CONDUIT FITTING, STRAIGHT 1-1/2 INCH, NON-INSULATED MALLEABLE IRON
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight, Threaded Type; Zinc Electroplated/Chromate Coated Steel (Body), Thermoplastic Nylon (Sealing Ring/Insulator), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 10 Standard Package; 1-1/2 Inch Trade Size; Non-Insulated Throat Type; RoHS Compliant; Diameter 2-23/32 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5200 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210052366
• SKU Name: t&b 5236
