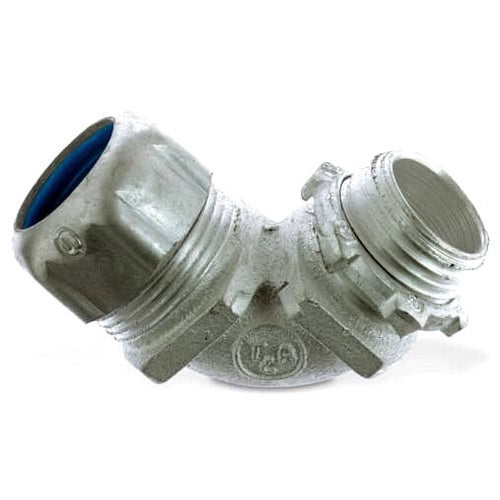

T&B 5253AL 3/4" 90D Liquidtight Non-Insulated Connector Aluminum

T&B 5253AL 3/4" 90D Liquidtight Non-Insulated Connector Aluminum

32 in stock

Regular price $18.20 USD
Regular price Sale price $18.20 USD
Sale Sold out
Quantity

Overview

T&B 5253AL 3/4" 90D Liquidtight Non-Insulated Connector Aluminum

Product Specifications

  • UPC: 78621080255
  • Used On: Liquid Tight Flexible Metallic Conduit
  • Additional Information: RoHS Compliant; Application Indoor/Outdoor, Industrial, Hazardous Location; Applicable Standard IEC/EN 61386-1, NEMA FB-1, A-A-50552
  • Catalog Number: 5253AL
  • Model: 5200AL
  • Type: 90 Degree
  • Throat Type: Non-Insulated
  • Trade Size: 3/4 Inch
  • Material: Zinc Plated Chromate Coated Aluminum (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone), Aluminum Cast (Locknut)
  • Standard Package: 50
  • Approval: UL, CSA, CE
  • Catalog Description: 3/4 INCH 90 DEGREE ALUMINUM LIQUIDTIGHT CONNECTOR, NON-INSULATED
  • Category: Liquid Tight Flex. Conduit Fittings
  • Full Technical Description: 90 Degree, Threaded Type; Zinc Plated/Clear Chromate Coated Aluminum (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone), Aluminum Cast (Locknut) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 50 Standard Package; 3/4 Inch Trade Size; Non-Insulated Throat Type; RoHS Compliant; Diameter 1-21/32 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2; Application Indoor/Outdoor, Industrial/Commercial, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5200AL Model
  • Made In Usa: Yes
  • Manufacturer: ABB, Inc. - Thomas & Betts
  • Manufacturer Brand: T&B Corp.
  • Sub Category: Liquidtight Flexible Conduit Connector
  • Unspsc: 39121420
  • UPC 12 Digit: 786210802558
  • SKU Name: t&b 5253al
