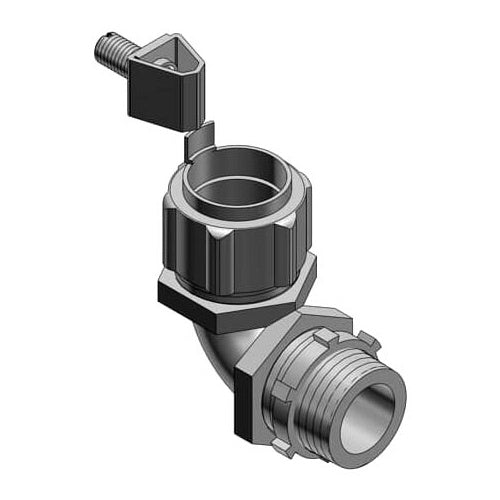

T&B 5253GR 3/4" 90D Liquidtight Non-Insulated Ground Connector Iron

Overview

T&B 5253GR 3/4" 90D Liquidtight Non-Insulated Ground Connector Iron

Product Specifications

• UPC: 78621089994
• Used On: Liquidtight Flexible Metallic Conduit
• Additional Information: RoHS Compliant; Application Hazardous Location, Indoor, Outdoor, Industrial, Commercial
• Catalog Number: 5253GR
• Model: 5200
• Type: 90 Degree, Grounding
• Throat Type: Non-Insulated
• Trade Size: 3/4 Inch
• Material: Zinc Chromate Coated Steel (Body), Zinc Plated Steel (Ground Cone), Thermoplastic Nylon (Sealing Ring), Tempered Cast (Lock Nut)
• Standard Package: 50 per Pack
• Approval: UL, CSA, CE
• Catalog Description: 3/4 INCH 90 DEGREE MALLEABLE IRON EXTERNAL BONDING LIQUIDTIGHT CONNECTOR, NON-INSULATED
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree, Threaded, Grounding Type; Zinc Electroplated/Chromate Coated Malleable Iron (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 50 Standard Package; 3/4 Inch Trade Size; Non-Insulated Throat Type; REVOLVER[R] Brand; RoHS Compliant; Diameter 1-21/32 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2; Application Indoor/Outdoor, Industrial/Commercial, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5200GR Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210899947
• SKU Name: t&b 5253gr

Resources

• Manufacturer Spec Sheet
• Technical Drawing
