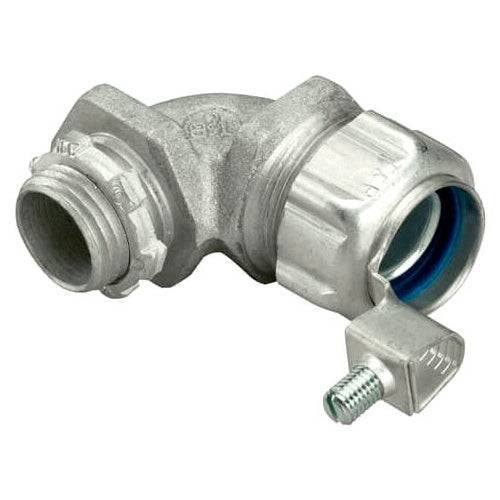

T&B 5254GR 1" 90D Liquidtight Non-Insulated Ground Connector Iron
Product Specifications
UPC: 78621089995
Used On: Liquidtight Flexible Metallic Conduit
Additional Information: Applicable Standard Federal Specification A-A-50552/A-A-50553/WC-586, NEMA FB 1; Ground Wire Size 14 to 4 AWG; Application to Positively Bond Conduit to Box or Enclosure, Used where External Bonding Jumper is Required Around Liquidtight Flexible Metal Con
Catalog Number: 5254GR
Model: 52
Type: 90 Degree
Throat Type: Non-Insulated
Trade Size: 1 Inch
Material: Electro Zinc Plated Steel
Standard Package: 25
Approval: UL, CSA
Catalog Description: 1 INCH 90 DEGREE MALLEABLE IRON EXTERNAL BONDING LIQUIDTIGHT CONNECTOR, NON-INSULATED
Category: Liquid Tight Flex. Conduit Fittings
Full Technical Description: 90 Degree Type; Electro Zinc Plated Steel Material; Liquidtight Flexible Metallic Conduit Used on; UL, CSA Approval; 25 Standard Package; 1 Inch Trade Size; Non-Insulated Throat Type; REVOLVER[R] Brand; Applicable Standard Federal Specification A-A-50552/A-A-50553/Wc-586, NEMA FB 1; Ground Wire Size 14 to 4 AWG; Application to Positively Bond Conduit to Box or Enclosure, Used Where External Bonding Jumper is Required Around Liquidtight Flexible Metal Conduit, Flexible Raceway is Installed in Outdoor or Indoors Location Where Exposed to Continuous or Intermittent Moisture; 52 Model
Made In Usa: Yes
Manufacturer: ABB, Inc. - Thomas & Betts
Manufacturer Brand: T&B Corp.
Sub Category: Liquidtight Flexible Conduit Connector
