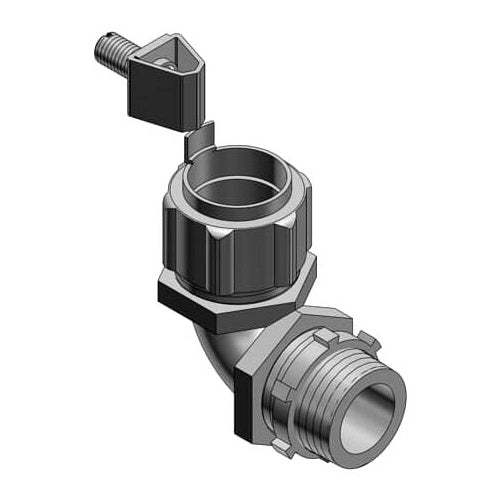

T&B 5256GR 1-1/2" 90D Liquidtight Non-Insulated Ground Connector Iron

Overview

T&B 5256GR 1-1/2" 90D Liquidtight Non-Insulated Ground Connector Iron

Product Specifications

• UPC: 78621089619
• Used On: Liquidtight Flexible Metallic Conduit
• Additional Information: Applicable Standard Federal Specification A-A-50552, NEMA FB-1, NFPA 70; Application Hazardous Location, Indoor, Outdoor
• Catalog Number: 5256GR
• Model: 52
• Type: 90 Deg
• Throat Type: Non-Insulated
• Trade Size: 1-1/2 Inch
• Material: Zinc Electroplated Chromate Coated Malleable Iron Body/Gland/Ground Cone/Locknut, Bright Dipped Copper Lug, Santoprene/Stainless Steel Sealing Gasket, Steel Strap, Thermoplastic Sealing Ring
• Standard Package: 10
• Approval: UL 514-B, CSA C22.2
• Catalog Description: 1-1/2 INCH 90 DEGREE MALLEABLE IRON EXTERNAL BONDING LIQUIDTIGHT CONNECTOR, NON-INSULATED
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree, Threaded, Grounding Type; Zinc Electroplated/Chromate Coated Malleable Iron (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 10 Standard Package; 1-1/2 Inch Trade Size; Non-Insulated Throat Type; REVOLVER[R] Brand; RoHS Compliant; Diameter 2-23/32 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2; Application Indoor/Outdoor, Industrial/Commercial, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5200GR Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210896199
• SKU Name: t&b 5256gr
