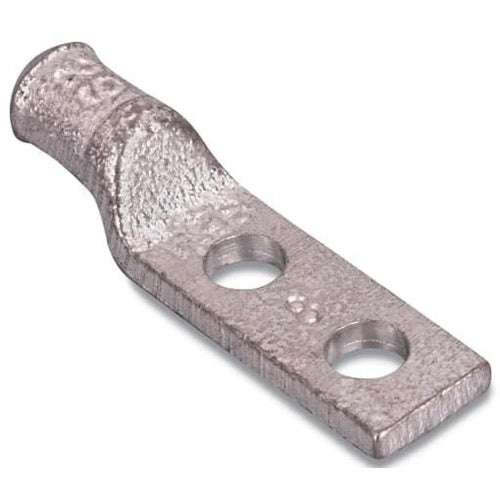

T&B 53218 2-Hole Heavy-Duty Lug 1/2" Bolt 500

Overview

High durability for long-term use in industrial applications, Enhanced performance metrics for improved efficiency, Easy installation and compatibility with various systems

Product Specifications

• UPC: 78621053218
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Pink
• Die Index: 99
• Material: Electro Tin Plated Cast Copper
• Overall Length: 5.31 Inch
• Approval: UL, CSA
• Catalog Number: 53218
• Model: 532
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 500 KCMIL
• Barrel Type: Standard, Straight
• Pad Size: 3.5 Inch L x 1.38 Inch W x 0.38 Inch Thk
• Number Of Pad Holes: 2
• Catalog Description: CAST COPPER TWO-HOLE HEAVY DUTY LUG, STANDARD BARREL, BLIND END, MAX 35KV, 500 KCMIL WIRE, 1/2 BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE COLOR CODE PINK, DIE CODE 99
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Cast Copper Material; Pink Color; 5.31 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 500 kcmil Conductor Size; 1/2 Inch Stud Size; 99 Die Index; 3.5 Inch L X 1.38 Inch W X 0.38 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Standard, Straight Barrel Type; 532 Model
• Made In Usa: Yes
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210532189
• SKU Name: T&B 53218
