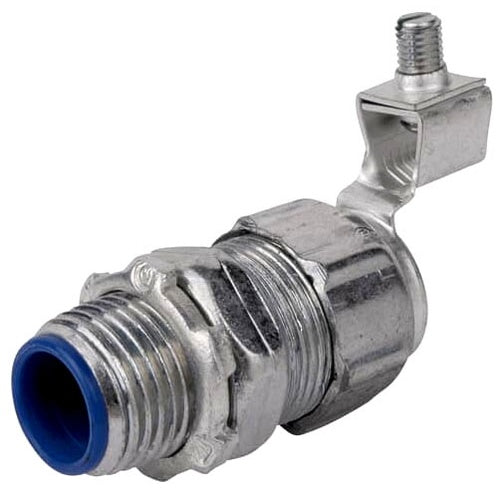

T&B 5334GR 1" Insulated Ground Liquidtight Straight

Overview

T&B 5334GR 1" Insulated Ground Liquidtight Straight

Product Specifications

• UPC: 78621090000
• Used On: Liquidtight Flexible Metallic Conduit
• Additional Information: Applicable Standard Federal Specification A-A-50552/A-A-50553/WC-586, NEMA FB 1; Ground Wire Size 14 to 4 AWG; Application to Positively Bond Conduit to Box or Enclosure, Used where External Bonding Jumper is Required Around Liquidtight Flexible Metal Con
• Catalog Number: 5334GR
• Model: 53
• Type: Straight
• Throat Type: Insulated
• Trade Size: 1 Inch
• Material: Electro Zinc Plated Steel
• Standard Package: 50
• Approval: UL, CSA
• Catalog Description: 1 INCH STEEL EXTERNAL BONDING LIQUIDTIGHT INSULATED CONNECTOR FLEXIBLE METAL CONDUIT FITTING, STRAIGHT, WITH REVOLVER LUG, WITH COPPER LUG FOR AWG #14 TO #4 GROUND WIRE, FOR USE IN WET LOCATIONS, 10 PIECES
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight, Threaded, Grounding Type; Zinc Electroplated/Chromate Coated Steel (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 50 Standard Package; 1 Inch Trade Size; Insulated Throat Type; REVOLVER[R] Brand; RoHS Compliant; Diameter 1-7/8 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2; Application Indoor/Outdoor, Industrial/Commercial, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5300GR Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210900001
• SKU Name: t&b 5334gr

Resources

• Manufacturer Spec Sheet
• Technical Drawing
