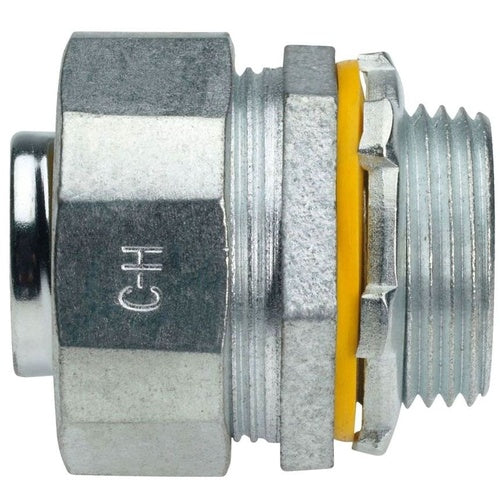

T&B 5335 1-1/4" Insulated Liquidtight Connector Straight

Overview

T&B 5335 1-1/4" Insulated Liquidtight Connector Straight

Product Specifications

• UPC: 78621005335
• Approval: UL 514B, CSA C22.2
• Used On: Liquidtight Flexible Metallic Conduit
• Additional Information: Constructional Feature Water Tight/Oil Tight; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEMA FB-1, NFPA 70, Federal Specification A-A-50552
• Catalog Number: 5335
• Brand Name: T&B
• Model: 53
• Type: Straight
• Throat Type: Thermoplastic Insulated
• Trade Size: 1-1/4 Inch
• Material: Zinc Electroplated Chromate Coated Steel (Body/Gland/Locknut/Ground Cone), Thermoplastic (Sealing Ring/Insulator), Stainless Steel and Santoprene (Sealing Gasket)
• Standard Package: 25 per Outer Pack
• Catalog Description: 1-1/4 INCH STRAIGHT STEEL INSULATED LIQUIDTIGHT CONNECTOR
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Zinc Electroplated Chromate Coated Steel (Body/Gland/Locknut/Ground Cone), Thermoplastic (Sealing Ring/Insulator), Stainless Steel and Santoprene (Sealing Gasket) Material; Liquidtight Flexible Metallic Conduit Used on; UL 514B, CSA C22.2 Approval; 25 Per Outer Pack Standard Package; 1-1/4 Inch Trade Size; Thermoplastic Insulated Throat Type; Constructional Feature Water Tight/Oil Tight; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEMA FB-1, NFPA 70, Federal Specification A-A-50552; 53 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210053356
• SKU Name: t&b 5335
