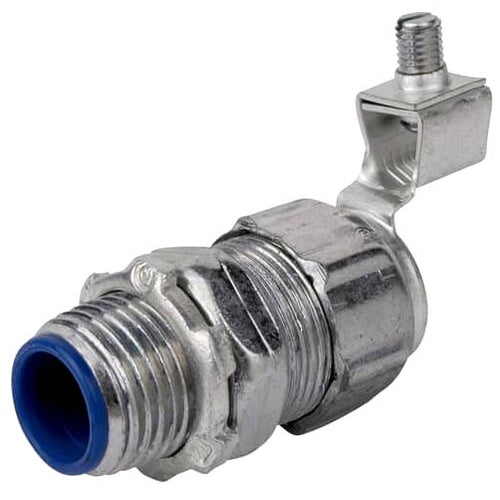

T&B 5337GR 2 Insulated Ground Liquidtight Straight

Overview

T&B 5337GR 2 Insulated Ground Liquidtight Straight

Product Specifications

• UPC: 78621089626
• Approval: UL 467/514B, CSA C22.2
• Used On: Liquidtight Flexible Metallic Conduit
• Additional Information: Constructional Feature Corrosion Resistant; Ground Wire Size 4 to 2/0 AWG; Includes Grounding Lug; Application Hazardous Location, Indoor/Outdoor; Applicable Standard NEMA FB-1, Federal Specification A-A-50552/H-28
• Catalog Number: 5337GR
• Brand Name: T&B
• Model: 53
• Type: Straight
• Throat Type: Thermoplastic Insulated
• Trade Size: 2 Inch
• Material: Zinc Electroplated Chromate Coated Steel (Body/Gland/Locknut/Ground Cone), Thermoplastic (Sealing Ring/Insulator), Stainless Steel and Santoprene (Sealing Gasket), Steel (Strap), Bright Dip High-Conductivity Copper (Lug)
• Standard Package: 5 per Outer Pack
• Catalog Description: 2 INCH STEEL EXTERNAL BONDING LIQUIDTIGHT INSULATED CONNECTOR FLEXIBLE METAL CONDUIT FITTING, STRAIGHT, WITH COPPER LUG FOR AWG #4 TO 2/0 GROUND WIRE, FOR USE IN WET LOCATIONS, 5 PIECES
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight, Threaded, Grounding Type; Zinc Electroplated/Chromate Coated Steel (Body), Thermoplastic Nylon (Sealing Ring/Insulator), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 5 Standard Package; 2 Inch Trade Size; Insulated Throat Type; REVOLVER[R] Brand; RoHS Compliant; Diameter 3-1/4 Inch; Ground Wire Size 4 to 2/0 AWG; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5300GR Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210896267
• SKU Name: t&b 5337gr

Resources

• Manufacturer Spec Sheet
• Technical Drawing
