Additional Information: RoHS Compliant; Overall Dimension 1-21/32 Inch Diameter x 2.687 Inch Length; Construction Type External Thread; Temperature Rating -13 to 221 Deg F; Enclosure Type NEMA 3/3R/4/12/13, IP66, IP67; Application Indoor/Outdoor, Control and Power; Applicable St
Catalog Number: 5343
Model: 5300
Type: 45 Degree
Throat Type: Insulated
Trade Size: 3/4 Inch
Material: Electro Zinc Plated/Chromate Coated Malleable Iron
Standard Package: 50
Approval: UL 514B, CE, CSA C22.2

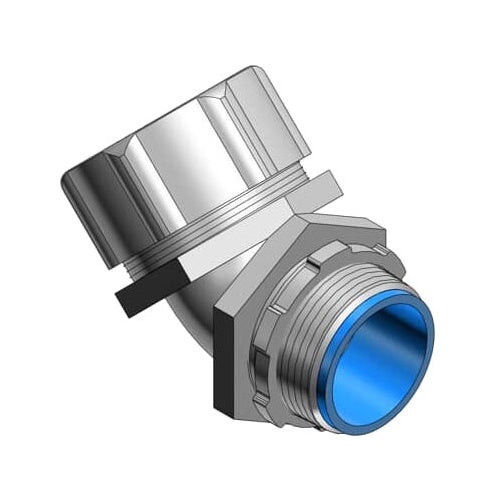

Catalog Description: 3/4 INCH 45 DEGREE MALLEABLE IRON INSULATED LIQUIDTIGHT CONNECTOR
Category: Liquid Tight Flex. Conduit Fittings
Full Technical Description: 45 Degree, Threaded Type; Zinc Electroplated/Chromate Coated Malleable Iron (Body), Thermoplastic Nylon (Sealing Ring/Insulator), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 50 Standard Package; 3/4 Inch Trade Size; Insulated Throat Type; RoHS Compliant; Diameter 1-21/32 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5300 Model
Made In Usa: Yes
Manufacturer: ABB, Inc. - Thomas & Betts
Manufacturer Brand: T&B Corp.
Sub Category: Liquidtight Flexible Conduit Connector
