Additional Information: Applicable Standard Federal Specification A-A-50552/A-A-50553/WC-586, NEMA FB 1; Ground Wire Size 14 to 4 AWG; Application to Positively Bond Conduit to Box or Enclosure, Used where External Bonding Jumper is Required Around Liquidtight Flexible Metal Con
Catalog Number: 5344GR
Model: 53
Type: 45 Degree
Throat Type: Insulated
Trade Size: 1 Inch
Material: Electro Zinc Plated Steel
Standard Package: 25
Approval: UL, CSA

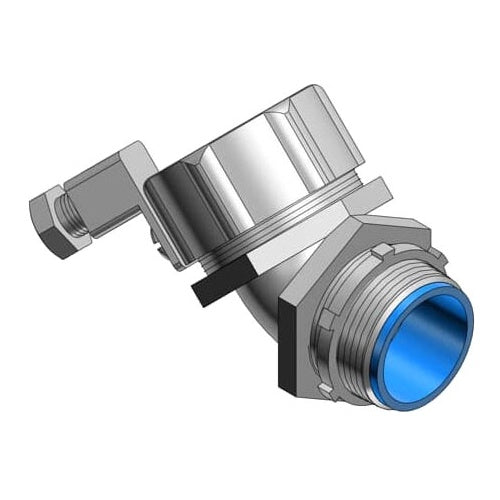

Catalog Description: 1 INCH 45 DEGREE MALLEABLE IRON EXTERNAL BONDING LIQUIDTIGHT INSULATED CONNECTOR
Category: Liquid Tight Flex. Conduit Fittings
Full Technical Description: 45 Degree, Threaded, Grounding Type; Zinc Electroplated/Chromate Coated Malleable Iron (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 25 Standard Package; 1 Inch Trade Size; Insulated Throat Type; REVOLVER[R] Brand; RoHS Compliant; Diameter 1-7/8 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5300GR Model
Made In Usa: Yes
Manufacturer: ABB, Inc. - Thomas & Betts
Manufacturer Brand: T&B Corp.
Sub Category: Liquidtight Flexible Conduit Connector
