Additional Information: Constructional Feature Water Tight/Oil Tight; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEMA FB-1, NFPA 70, Federal Specification A-A-50552
Catalog Number: 5346
Brand Name: T&B
Model: 53
Type: 45 Degree
Throat Type: Thermoplastic Insulated
Trade Size: 1-1/2 Inch
Material: Zinc Electroplated Chromate Coated Malleable Iron (Body/Gland/Locknut/Ground Cone), Thermoplastic (Sealing Ring/Insulator), Stainless Steel and Santoprene (Sealing Gasket)
Standard Package: 10 per Outer Pack

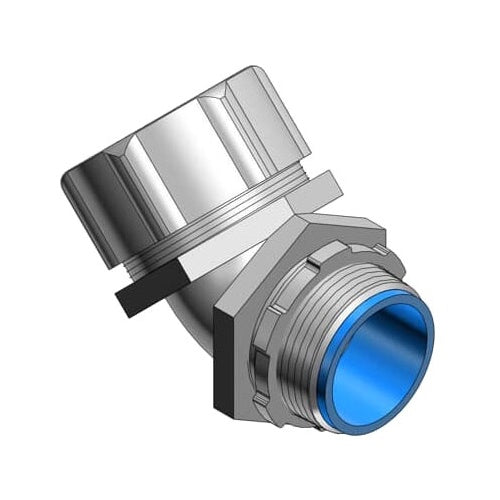

Catalog Description: 1-1/2 INCH 45 DEGREE MALLEABLE IRON INSULATED LIQUIDTIGHT CONNECTOR
Category: Liquid Tight Flex. Conduit Fittings
Full Technical Description: 45 Degree, Threaded Type; Zinc Electroplated/Chromate Coated Malleable Iron (Body), Thermoplastic Nylon (Sealing Ring/Insulator), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 10 Standard Package; 1-1/2 Inch Trade Size; Insulated Throat Type; RoHS Compliant; Diameter 2-23/12 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5300 Model
Made In Usa: Yes
Manufacturer: ABB, Inc. - Thomas & Betts
Manufacturer Brand: T&B Corp.
Sub Category: Liquidtight Flexible Conduit Connector
