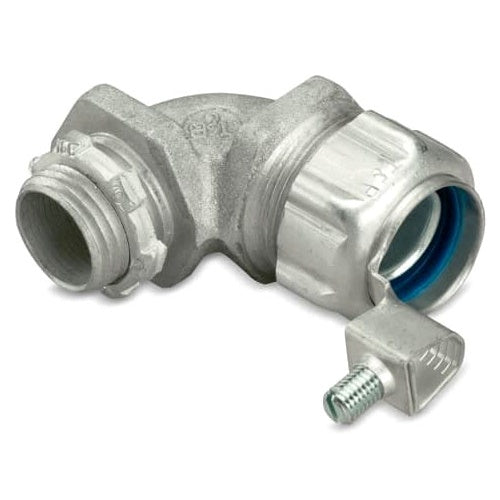

Catalog Description: 3/4 INCH EXTERNAL BONDING LIQUIDTIGHT INSULATED CONNECTOR FLEXIBLE METAL CONDUIT FITTING, 90 DEGREE ANGLE, WITH REVOLVER LUG, WITH TIN TO PLATED COPPER ALLOY LUG FOR AWG #14 TO #2 GROUND WIRE, FOR USE IN WET LOCATIONS, 10 PIECES
Category: Liquid Tight Flex. Conduit Fittings
Full Technical Description: 90 Degree, Threaded, Grounding Type; Zinc Electroplated/Chromate Coated Malleable Iron (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 50 Standard Package; 3/4 Inch Trade Size; Insulated Throat Type; REVOLVER[R] Brand; RoHS Compliant; Diameter 1-21/32 Inch; Ground Wire Size 14 to 2 AWG; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5300GR Model
Made In Usa: Yes
Manufacturer: ABB, Inc. - Thomas & Betts
Manufacturer Brand: T&B Corp.
Sub Category: Liquidtight Flexible Conduit Connector
