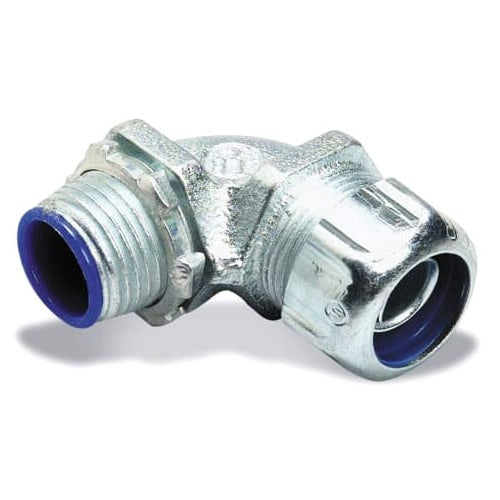

T&B 5354 1" Insulated 90 Degree Liquidtight Connector

Overview

T&B 5354 1" Insulated 90 Degree Liquidtight Connector

Product Specifications

• UPC: 78621005354
• Approval: UL 514B, CSA C22.2
• Used On: Liquidtight Flexible Metallic Conduit
• Additional Information: Constructional Feature Water Tight/Oil Tight; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEMA FB-1, NFPA 70, Federal Specification A-A-50552
• Catalog Number: 5354
• Brand Name: T&B
• Model: 53
• Type: 90 Degree
• Throat Type: Thermoplastic Insulated
• Trade Size: 1 Inch
• Material: Zinc Electroplated Chromate Coated Steel (Body/Gland/Locknut/Ground Cone), Thermoplastic (Sealing Ring/Insulator), Stainless Steel and Santoprene (Sealing Gasket)
• Standard Package: 25 per Outer Pack
• Catalog Description: 1 INCH 90 DEGREE MALLEABLE IRON INSULATED LIQUIDTIGHT CONNECTOR
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree, Threaded Type; Zinc Electroplated/Chromate Coated Malleable Iron (Body), Thermoplastic Nylon (Sealing Ring/Insulator), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 25 Standard Package; 1 Inch Trade Size; Insulated Throat Type; RoHS Compliant; Diameter 1-7/8 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5300 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210053547
• SKU Name: t&b 5354

Resources

• Manufacturer Spec Sheet
