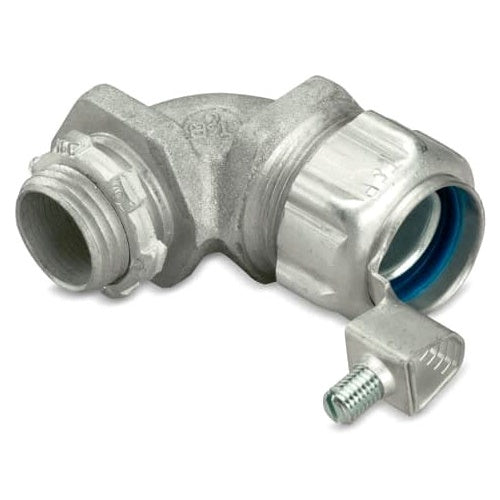

T&B 5354GR Insulated 90 Deg Liquidtight Ground Fitting 1

Overview

T&B 5354GR Insulated 90 Deg Liquidtight Ground Fitting 1

Product Specifications

• UPC: 78621090010
• Used On: Liquidtight Flexible Metallic Conduit
• Additional Information: Applicable Standard Federal Specification A-A-50552/A-A-50553/WC-586, NEMA FB 1; Ground Wire Size 14 to 4 AWG; Application to Positively Bond Conduit to Box or Enclosure, Used where External Bonding Jumper is Required Around Liquidtight Flexible Metal Con
• Catalog Number: 5354GR
• Model: 53
• Type: 90 Degree
• Throat Type: Insulated
• Trade Size: 1 Inch
• Material: Electro Zinc Plated Steel
• Standard Package: 25
• Approval: UL, CSA
• Catalog Description: 1 INCH 90 DEGREE MALLEABLE IRON EXTERNAL BONDING LIQUIDTIGHT INSULATED CONNECTOR,
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree, Threaded, Grounding Type; Zinc Electroplated/Chromate Coated Malleable Iron (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 25 Standard Package; 1 Inch Trade Size; Insulated Throat Type; REVOLVER[R] Brand; RoHS Compliant; Diameter 1-7/8 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5300GR Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210900100
• SKU Name: t&b 5354gr
