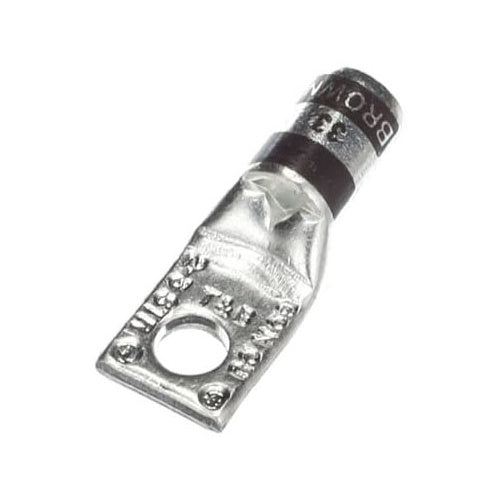

T&B 54107 No2 Copper Standard Barrel 1-Hole 1/4" Bolt

Overview

T&B 54107 No2 Copper Standard Barrel 1-Hole 1/4" Bolt

Product Specifications

• UPC: 78621054107
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Brown
• Die Index: 33
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 1.5 Inch
• Approval: UL, CSA
• Additional Information: Wire Strip Length 5/8 Inch; Includes Sight Hole
• Catalog Number: 54107
• Brand Name: Color-Keyed
• Model: 541
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 2 AWG (Code), 60 (Navy, Flex), 3 AWG Stranded (Flex), 125/24 (Flex), 4 AWG (Weld, Flex), 0.3 (Flex)
• Barrel Type: Standard, Straight
• Pad Size: 0.65 Inch Length x 0.59 Inch Width x 0.11 Inch Thickness
• Catalog Description: COPPER ONE-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE #2 AWG, 1/4 INCH BOLT SIZE, TIN PLATED, DIE CODE 33, DIE COLOR CODE BROWN
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Brown Color; 1.5 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 2 AWG (Code), 60 (Navy, Flex), 3 AWG Stranded (Flex), 125/24 (Flex), 4 AWG (Weld, Flex), 0.3 (Flex) Conductor Size; 1/4 Inch Stud Size; 33 Die Index; 0.65 Inch Length X 0.59 Inch Width X 0.11 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; Wire Strip Length 5/8 Inch; Includes Sight Hole; 541 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210541075
• SKU Name: t&b 54107
