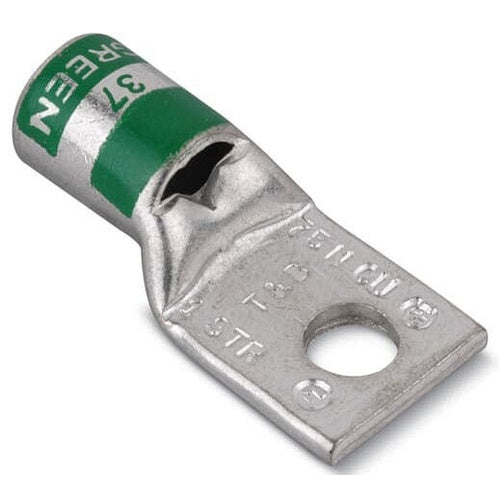

T&B 54148 No1 Copper Standard Barrel 1-Hole 3/8" Bolt

Overview

T&B 54148 No1 Copper Standard Barrel 1-Hole 3/8" Bolt

Product Specifications

• UPC: 78621054148
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Green
• Die Index: 37
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 1.78 Inch
• Approval: UL, CSA
• Additional Information: Wire Strip Length 3/4 Inch; Includes Sight Hole
• Catalog Number: 54148
• Brand Name: Color-Keyed
• Model: 541
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 1 AWG (Code), 75 (Navy, Flex), 2 AWG Stranded (Flex), 2 AWG (Weld, Flex), 150/24 (Flex), 175/24 (Flex), 133/0.0223 (Flex), 0.36 (Flex)
• Barrel Type: Standard, Straight
• Pad Size: 0.98 Inch Length x 0.68 Inch Width x 0.11 Inch Thickness
• Catalog Description: COPPER ONE-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE #1 AWG, 3/8 INCH BOLT SIZE, TIN PLATED, DIE CODE 37, DIE COLOR CODE GREEN
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Green Color; 1.78 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 1 AWG (Code), 75 (Navy, Flex), 2 AWG Stranded (Flex), 2 AWG (Weld, Flex), 150/24 (Flex), 175/24 (Flex), 133/0.0223 (Flex), 0.36 (Flex) Conductor Size; 3/8 Inch Stud Size; 37 Die Index; 0.98 Inch Length X 0.68 Inch Width X 0.11 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; Wire Strip Length 3/4 Inch; Includes Sight Hole; 541 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210541488
• SKU Name: t&b 54148
