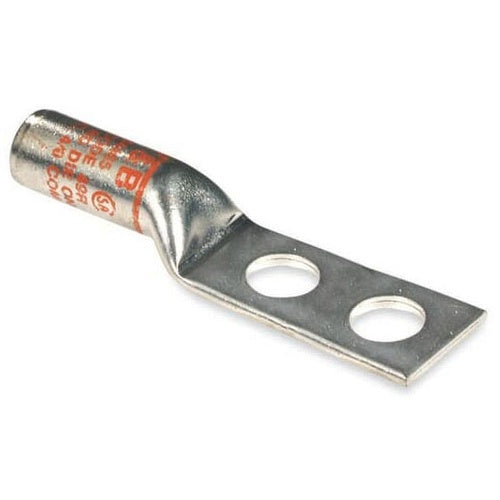

T&B 54481 Copper Tin Plated 2-Hole High-Voltage Lug Long Barrel 300 White

Overview

T&B 54481 Copper Tin Plated 2-Hole High-Voltage Lug Long Barrel 300 White

Product Specifications

• UPC: 78621054481
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 INCH
• Stud Size: 1/2 INCH
• Color: WHITE
• Material: COPPER
• Overall Length: 5.16 INCH
• Approval: UL, CSA
• Catalog Number: 54481
• Brand Name: Color-Keyed[R]
• Model: 544
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 300 KCMIL
• Barrel Type: TAPERED
• Pad Size: 3 INCH L X 1.19 INCH W X 0.16 INCH THK
• Catalog Description: COPPER TWO-HOLE HIGH VOLTAGE LUG, LONG BARREL, BLIND END, MAX 15KV, WIRE SIZE 300 KCMIL, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 66R, DIE COLOR CODE WHITE ROUNDING
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; White Color; 5.16 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 300 kcmil Conductor Size; 1/2 Inch Stud Size; 3 Inch L X 1.19 Inch W X 0.16 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Tapered Barrel Type; COLOR-KEYED[R] Brand; 544 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210544816
• SKU Name: t&b 54481
