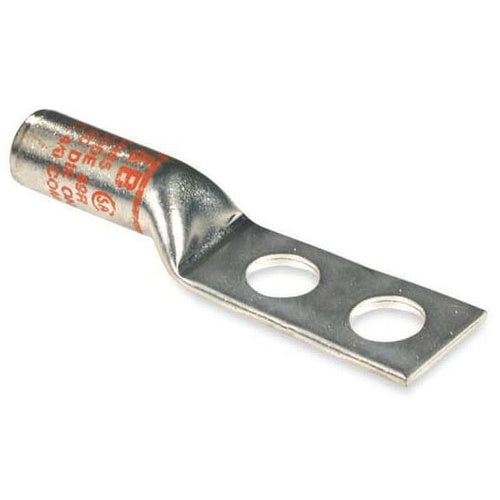

T&B 54482 Copper Tin Plated 2-Hole High-Voltage Lug Long Barrel 350 Red

Overview

T&B 54482 Copper Tin Plated 2-Hole High-Voltage Lug Long Barrel 350 Red

Product Specifications

• UPC: 78621054482
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Red
• Die Index: 71R
• Material: Tin Plated Copper
• Overall Length: 5.35 Inch
• Approval: UL, CSA
• Catalog Number: 54482
• Model: 544
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 350 KCMIL
• Barrel Type: Long, Straight, Tapered
• Pad Size: 3 Inch L x 1.29 Inch W x 0.19 Inch Thk
• Number Of Pad Holes: 2
• Catalog Description: COPPER TWO-HOLE HIGH VOLTAGE LUG, LONG BARREL, BLIND END, MAX 15KV, WIRE SIZE 350 KCMIL, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 71R, DIE COLOR CODE RED ROUNDING DIE
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Red Color; 5.35 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 350 kcmil Conductor Size; 1/2 Inch Stud Size; 71R Die Index; 3 Inch L X 1.29 Inch W X 0.19 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight, Tapered Barrel Type; 544 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210544823
• SKU Name: t&b 54482
