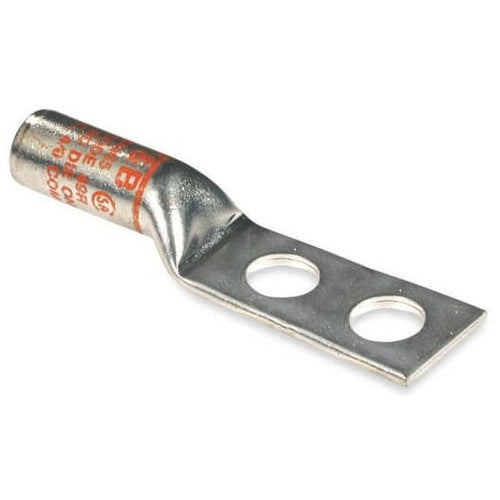

T&B 54490 Copper Tin Plated 2-Hole High-Voltage Lug Long Barrel 1000

Overview

High-performance electrical insulation for enhanced safety., Durable construction that withstands extreme temperatures and environmental conditions., Easy installation with versatile mounting options.

Product Specifications

• UPC: 78621054490
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Die Index: 125R
• Material: Tin Plated Copper
• Overall Length: 6.6 Inch
• Approval: UL, CSA
• Catalog Number: 54490
• Model: 544
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 1000 KCMIL
• Barrel Type: Long, Straight, Tapered
• Pad Size: 3 Inch L x 2.18 Inch W x 0.31 Inch Thk
• Number Of Pad Holes: 2
• Catalog Description: COPPER TWO-HOLE HIGH VOLTAGE LUG, LONG BARREL, BLIND END, MAX 15KV, WIRE SIZE 1000 KCMIL, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 125R
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; 6.6 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1000 kcmil Conductor Size; 1/2 Inch Stud Size; 125R Die Index; 3 Inch L X 2.18 Inch W X 0.31 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight, Tapered Barrel Type; 544 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210544908
• SKU Name: T&B 54490
