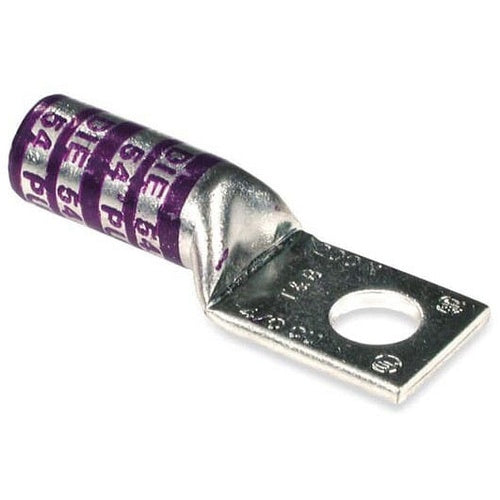

T&B 54970BE 1-Hole Long Barrel 1/2" Hole 4/0

Overview

T&B 54970BE 1-Hole Long Barrel 1/2" Hole 4/0

Product Specifications

• UPC: 78621089829
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Purple
• Die Index: 54
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 2.95 Inch
• Approval: UL, CSA
• Additional Information: Includes Blind End Inspection Hole
• Catalog Number: 54970BE
• Brand Name: Color-Keyed
• Model: 549
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 4/0 AWG (Code), 3/0 AWG (Weld, Flex), 450/24 (Flex), 182 KCMIL (Flex)
• Barrel Type: Long, Straight
• Pad Size: 1.25 Inch Length x 1.03 Inch Width x 0.14 Inch Thickness
• Catalog Description: COPPER ONE-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, WIRE SIZE 4/0 AWG, 1/2 INCH BOLT SIZE, TIN PLATED, DIE CODE 54, DIE COLOR CODE PURPLE
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Purple Color; 2.95 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 4/0 AWG (Code), 3/0 AWG (Weld, Flex), 450/24 (Flex), 182 kcmil (Flex) Conductor Size; 1/2 Inch Stud Size; 54 Die Index; 1.25 Inch Length X 1.03 Inch Width X 0.14 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Includes Blind End Inspection Hole; 549 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210898292
• SKU Name: t&b 54970be
