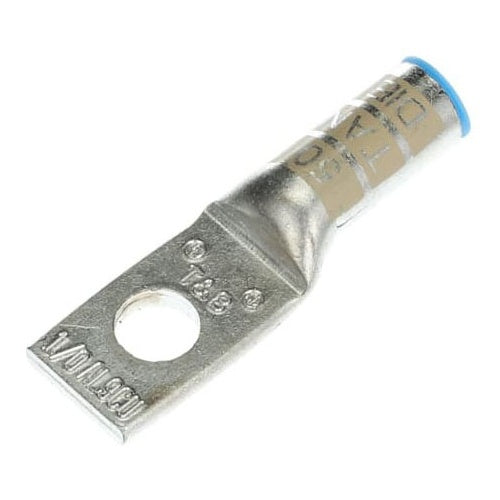

T&B 60132 1/0Awg Tan 1-Hole Aluminum/Copper Lug

Overview

T&B 60132 1/0Awg Tan 1-Hole Aluminum/Copper Lug

Product Specifications

• UPC: 78621060132
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Tan
• Die Index: 50
• Material: Electro Tin Plated Wrought Aluminum
• Overall Length: 2.95 Inch
• Approval: UL, CSA
• Catalog Number: 60132
• Brand Name: Color-Keyed
• Model: 601
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Aluminum/Copper
• Conductor Size: 1/0 AWG (Code)
• Barrel Type: Long, Straight
• Pad Size: 1.41 Inch Length x 0.94 Inch Width x 0.19 Inch Thickness
• Catalog Description: ALUMINUM ONE-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, 1/0 AWG WIRE, 1/2 INCH BOLT SIZE, TIN PLATED, DIE CODE 50, DIE COLOR CODE TAN
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Aluminum Material; Tan Color; 2.95 Inch Overall Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 1/0 AWG (Code) Conductor Size; 1/2 Inch Stud Size; 50 Die Index; 1.41 Inch Length X 0.94 Inch Width X 0.19 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; 601 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210601328
• SKU Name: t&b 60132
