Material: High Conductivity Electro Tin Plated Wrought Aluminum
Overall Length: 4.73 Inch
Approval: UL, CSA
Additional Information: Temperature Rating 90 Deg C; Includes Blind End Inspection Hole
Catalog Number: 60254
Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Aluminum/Copper
Conductor Size: 250 KCMIL (Code)
Barrel Type: Long, Straight
Pad Size: 1.93 Inch Length x 1.29 Inch Width x 0.27 Inch Thickness
Number Of Pad Holes: 2
Pad Hole Spacing: 1 Inch

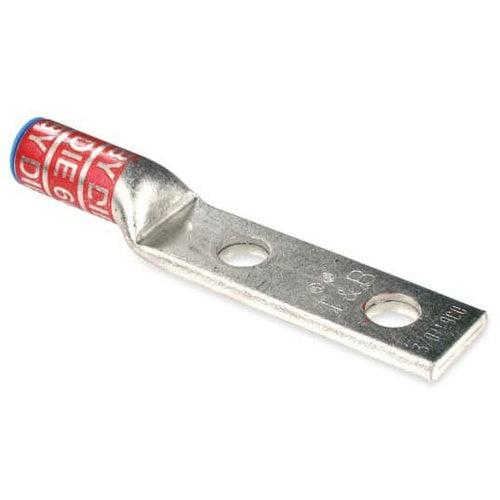

Catalog Description: ALUMINUM TWO-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, 250 KCMIL WIRE, 3/8 INCH BOLT SIZE, 1 INCH HOLE SPACING, TIN PLATED, DIE CODE 71H, DIE COLOR CODE RED
Category: Large Terminals & Connectors
Full Technical Description: High Conductivity Electro Tin Plated Wrought Aluminum Material; Red Color; 4.73 Inch Overall Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 250 kcmil (Code) Conductor Size; 3/8 Inch Stud Size; 71 Die Index; 1.93 Inch Length X 1.29 Inch Width X 0.27 Inch Thickness Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Straight Barrel Type; Temperature Rating 90 Deg C; Includes Blind End Inspection Hole
