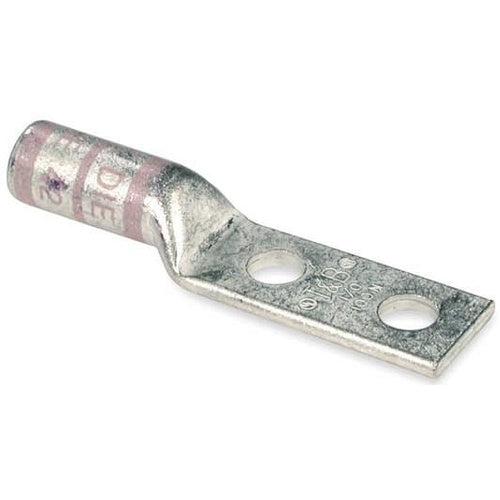

T&B 60273 500Mcm Pink 2-Hole Aluminum/Copper Lug

Overview

T&B 60273 500Mcm Pink 2-Hole Aluminum/Copper Lug

Product Specifications

• UPC: 78621060273
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Pink
• Die Index: 99
• Material: Electro Tin Plated Wrought Aluminum
• Overall Length: 6.7 Inch
• Approval: UL, CSA
• Catalog Number: 60273
• Brand Name: Color-Keyed
• Model: 602
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Aluminum/Copper
• Conductor Size: 500 KCMIL
• Barrel Type: Long, Straight
• Pad Size: 3 Inch Length x 1.79 Inch Width x 0.38 Inch Thickness
• Catalog Description: ALUMINUM TWO-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, 500 KCMIL WIRE, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 99, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Aluminum Material; Pink Color; 6.7 Inch Overall Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 500 kcmil Conductor Size; 1/2 Inch Stud Size; 99 Die Index; 3 Inch Length X 1.79 Inch Width X 0.38 Inch Thickness Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight Barrel Type; 602 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210602738
• SKU Name: t&b 60273
