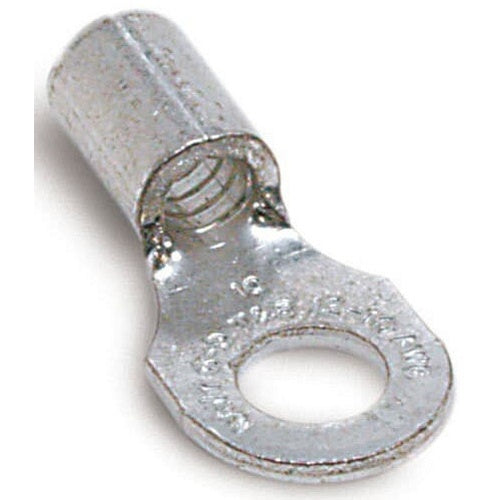

T&B A18-10 Non-Insulated Ring Terminal 22-16, No10, Meta

Overview

T&B A18-10 Non-Insulated Ring Terminal 22-16, No10, Meta

Product Specifications

• UPC: 78621080302
• Temperature Rating: 150 Deg C
• Standard Package: 500 per Outer Pack
• Approval: UL 486A, CSA C22.2
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 3/4 Inch Length x 0.31 Inch Width x 0.03 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Catalog Number: A18-10
• Brand Name: Sta-Kon
• Type: Standard
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Color: Metallic
• Insulation Type: Non-Insulated
• Stud Size: #10
• Catalog Description: STA-KON NON-INSULATED RING TERMINAL AWG 22-19, STUD SIZE #10
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Metallic Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486A, CSA C22.2 Approval; 150 Deg C Temperature Rating; 500 Per Outer Pack Standard Package; #10 Stud Size; Non-Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 3/4 Inch Length X 0.31 Inch Width X 0.03 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210803029
• SKU Name: t&b a1810

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
