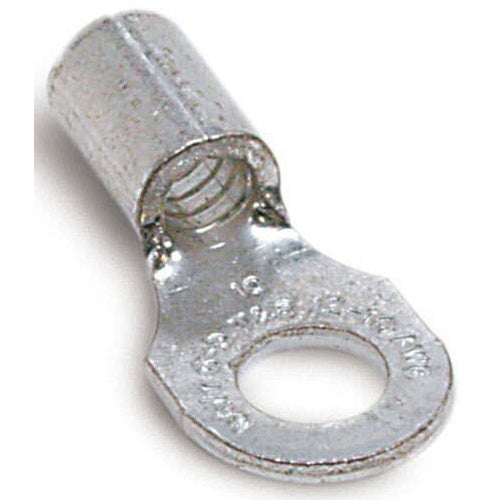

T&B A18-8 Non-Insulated Ring Terminal 22-16, No8, Metal

Overview

T&B A18-8 Non-Insulated Ring Terminal 22-16, No8, Metal

Product Specifications

• UPC: 78621080300
• Temperature Rating: 150 Deg C
• Standard Package: 100
• Approval: UL 486-A, CSA 22.2
• Additional Information: Dimension 3/4 Inch L x 0.31 Inch W x 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: A18-8
• Model: A
• Type: Standard
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Color: Metallic
• Insulation Type: Non-Insulated
• Stud Size: #8
• Catalog Description: NON-INSULATED RING TERMINAL, LENGTH .75 INCHES, WIDTH .31 INCHES, BOLT HOLE #8, WIRE RANGE #22-#16 AWG, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Metallic Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 150 Deg C Temperature Rating; 100 Standard Package; #8 Stud Size; Non-Insulated Insulation Type; Dimension 3/4 Inch L X 0.31 Inch W X 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; A Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210803005
• SKU Name: t&b a188

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
