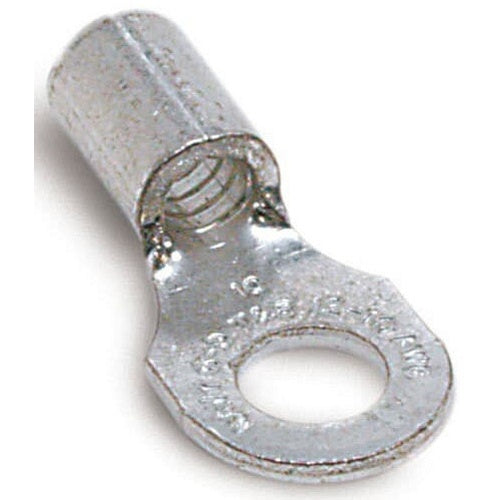

T&B A71 Non-Insulated Ring Terminal 22-16 Bolt 1/4
Product Specifications
UPC: 78621080798
Temperature Rating: 150 Deg C
Standard Package: 10000 per Outer Pack
Approval: UL 486A, CSA C22.2
Additional Information: Voltage Rating 600 Volt; Overall Dimension 0.92 Inch Length x 1/2 Inch Width x 0.03 Inch Thickness; Material Copper; Finish Electro Tin Plated
Catalog Number: A71
Brand Name: Sta-Kon
Type: Standard
Minimum Conductor Size: 22 AWG
Maximum Conductor Size: 16 AWG
Color: Metallic
Insulation Type: Non-Insulated
Stud Size: 1/4 Inch
Catalog Description: NON-INSULATED RING TERMINAL, LENGTH .92 INCHES, WIDTH .50 INCHES, BOLT HOLE 1/4 INCH, WIRE RANGE #22-#16 AWG, COPPER, TIN PLATED, 1,000 PACK
Category: Small Terminals & Connectors
Full Technical Description: Standard Type; Metallic Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486A, CSA C22.2 Approval; 150 Deg C Temperature Rating; 10000 Per Outer Pack Standard Package; 1/4 Inch Stud Size; Non-Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 0.92 Inch Length X 1/2 Inch Width X 0.03 Inch Thickness; Material Copper; Finish Electro Tin Plated
