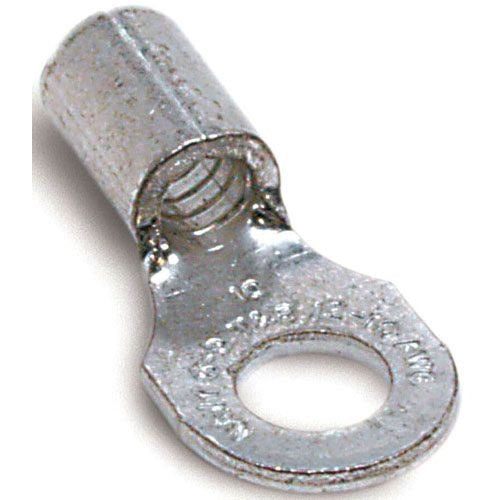

T&B A73 Non-Insulated Ring Terminal 22-16 Bolt 3/8"

Overview

T&B A73 Non-Insulated Ring Terminal 22-16 Bolt 3/8"

Product Specifications

• UPC: 78621080802
• Temperature Rating: 150 Deg C
• Standard Package: 1000
• Approval: UL 486-A, CSA 22.2
• Additional Information: Dimension 0.99 Inch L x 0.54 Inch W x 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: A73
• Model: A
• Type: Standard
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Color: Metallic
• Insulation Type: Non-Insulated
• Stud Size: 3/8 Inch
• Catalog Description: NON-INSULATED RING TERMINAL, LENGTH .99 INCHES, WIDTH .54 INCHES, BOLT HOLE 3/8 INCH, WIRE RANGE #22-#16 AWG, COPPER, TIN PLATED, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Metallic Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 150 Deg C Temperature Rating; 1000 Standard Package; 3/8 Inch Stud Size; Non-Insulated Insulation Type; Dimension 0.99 Inch L X 0.54 Inch W X 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; A Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210808024
• SKU Name: t&b a73
