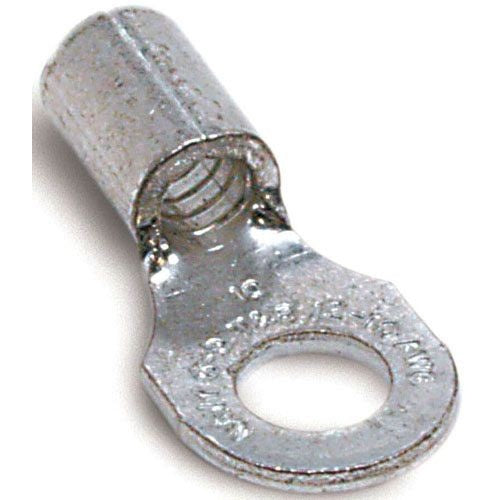

T&B A86 Non-Insulated Ring Terminal 22-16 Bolt No8

Overview

T&B A86 Non-Insulated Ring Terminal 22-16 Bolt No8

Product Specifications

• UPC: 78621080806
• Additional Information: Size 0.75 Inch Length x 0.31 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Catalog Number: A86
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Insulation Type: Non-Insulated
• Stud Size: #8
• Temperature Rating: 150 Deg C
• Standard Package: 1000 per Pack
• Approval: UL 486A/B, CSA 22.2
• Catalog Description: NON-INSULATED RING TERMINAL, LENGTH .75 INCHES, WIDTH .31 INCHES, BOLT HOLE #8, WIRE RANGE #22-#16 AWG, COPPER, TIN PLATED, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 150 Deg C Temperature Rating; 1000 Per Pack Standard Package; #8 Stud Size; Non-Insulated Insulation Type; Size 0.75 Inch Length X 0.31 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210808062
• SKU Name: t&b a86
