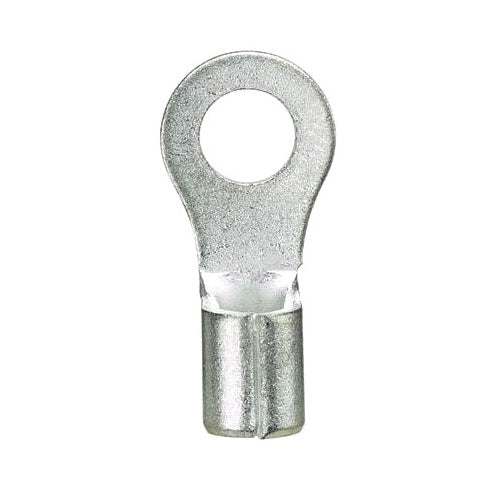

T&B B71 Non-Insulated Ring Terminal 18-14 1/4 Metal
Product Specifications
UPC: 78621080924
Additional Information: Size 0.93 Inch Length x 0.5 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
Catalog Number: B71
Minimum Conductor Size: 18 AWG
Maximum Conductor Size: 14 AWG
Insulation Type: Non-Insulated
Stud Size: 1/4 Inch
Temperature Rating: 150 Deg C
Standard Package: 1000 per Pack
Approval: UL 486A/B, CSA 22.2
Catalog Description: NON-INSULATED RING TERMINAL, LENGTH .93 INCHES, WIDTH .50 INCHES, BOLT HOLE 1/4 INCH, WIRE RANGE #18-#14 AWG, COPPER, TIN PLATED, 1,000 PACK
Category: Small Terminals & Connectors
Full Technical Description: 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 150 Deg C Temperature Rating; 1000 Per Pack Standard Package; 1/4 Inch Stud Size; Non-Insulated Insulation Type; Size 0.93 Inch Length X 0.5 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
