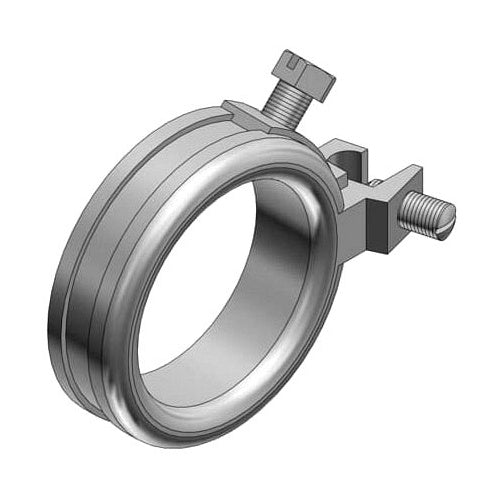

T&B BG300-14-20 3" Ground Bushing For 14-2/0 Range
Product Specifications
UPC: 78621016273
Height: 1.181 Inch
Material: Zinc Plated Malleable Iron (Body), Brass (Mounting Screw)
Standard Package: 10 per Outer Pack
Approval: UL 514B/467, CSA C22.2
Used On: Threaded/Threadless IMC/Rigid Conduit
Catalog Number: BG300-14-20
Brand Name: Blackjack[R]
Type: Threadless, Lug Screw
Trade Size: 3 Inch
Wire Size: 14 to 2/0 AWG
Lug Type: Stainless Steel Screw
Throat Type: Insulated
Diameter: 4.042 Inch
Catalog Description: 3 INCH BLACKJACK GROUNDING BUSHING, MALLEABLE IRON ZINC PLATED, WIRE RANGE 14 TO 2/0 FOR USE WITH THREADED OR THREADLESS RIGID/IMC CONDUIT
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Threadless, Lug Screw Type; Zinc Plated Malleable Iron (Body), Brass (Mounting Screw) Material; 1.181 Inch; Threaded/Threadless Imc/Rigid Conduit Used on; 14 to 2/0 AWG Wire Size; UL 514B/467, CSA C22.2 Approval; 4.042 Inch Diameter; 10 Per Outer Pack Standard Package; 3 Inch Trade Size; Insulated Throat Type; Stainless Steel Screw Lug Type; BLACKJACK[R] Brand
