Additional Information: Applicable Standard Federal Specification WC-586D; Includes Cover, Gasket, Screw
Catalog Number: BLB10-TB
Model: B
Access Opening: Back
Configuration: LB
Cover Type: Gray Iron, Screw-On
Hub Location: 90 Deg
Number Of Hubs: 2
Hub Size: 4 Inch

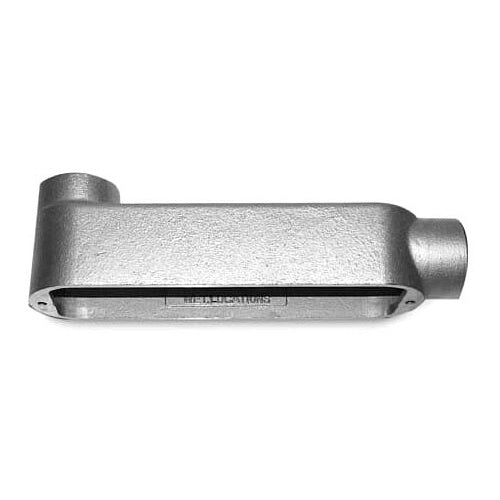

Catalog Description: 4 INCH MOGUL CONDUIT OUTLET BODY, COVER AND GASKET, BACK OPENING, BODY MATERIAL GRAY IRON, FINISH ELECTRO GALVANIZED, COVER MATERIAL GRAY IRON WITH STAINLESS STEEL COVER SCREWS, GASKET MATERIAL NEOPRENE
Category: Steel Conduit Bodies & Covers
Full Technical Description: Aluminum Acrylic Painted Electro Galvanized Gray Iron Alloy Body, Stainless Steel Screw, Neoprene Gasket Material; 22.16 Inch L X 5.25 Inch W X 7 Inch H Size; Rigid/Imc Conduit Used on; 4 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514B, UL E2969, CSA C22.2 Approval; Gray Iron, Screw-on Cover Type; 90 Deg Hub Location; Back Access Opening; Mogul Brand; Applicable Standard Federal Specification WC-586D; Includes Cover, Gasket, Screw; B Model
