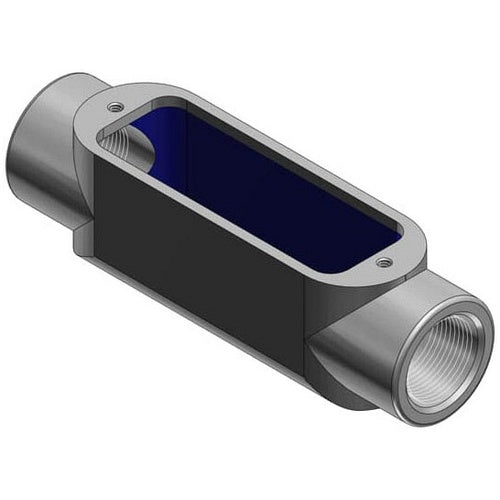

T&B C88 3" Conduit Body Gray Iron C-Type Form-8

Overview

High-strength construction for durability, Corrosion-resistant finish for extended lifespan, Seamless compatibility with standard industrial systems, Easy installation and maintenance

Product Specifications

• UPC: 78621016556
• Installation: THREADED
• Material: SAND CAST ZINC PLATED, ALUMINUM ACRYLIC COATED GRAY IRON ALLOY BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW
• Form Type: FORM 8
• Approval: UL 514-A, UL 514-B, CSA 22.2
• Used On: RIGID CONDUIT
• Additional Information: APPLICABLE STANDARD FEDERAL SPECIFICATION WC-586D
• Catalog Number: C88
• Access Opening: SIDE
• Configuration: C
• Cover Type: SAND CAST ZINC PLATED, ALUMINUM ACRYLIC COATED GRAY (IRON ALLOY), STAMPED ZINC PLATED, CLEAR CHROMATE COATED (STEEL), SCREW ON
• Hub Location: STRAIGHT
• Number Of Hubs: 2
• Hub Size: 3 INCH
• Size: 15-5/8 INCH L X 5 INCH W X 4-13/16 INCH H
• Catalog Description: BLUEKOTE THRU-FEED FORM 8, 3 INCH CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw Material; 15-5/8 Inch L X 5 Inch W X 4-13/16 Inch H Size; Rigid Conduit Used on; 3 Inch Hub Size; Threaded Installation; C Configuration; 2 Hub(S); UL 514-A, UL 514-B, CSA 22.2 Approval; Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw on Cover Type; Straight Hub Location; Form 8 Form Type; Side Access Opening; Applicable Standard Federal Specification WC-586D
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210165561
• SKU Name: T&B C88
