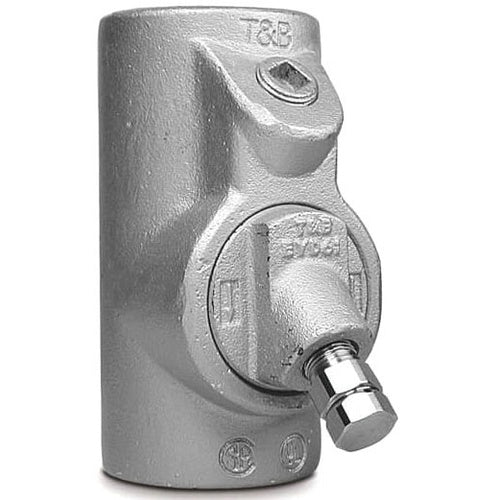

T&B EYD31-TB 1" Eyd Drain Seal, Iron, Vertical Explosion-Proof

Overview

T&B EYD31-TB 1" Eyd Drain Seal, Iron, Vertical Explosion-Proof

Product Specifications

• UPC: 78621074051
• Approval: UL, UL 886, CSA, CSA C22.2
• Additional Information: Length 4.85 Inch; Constructional Feature Explosionproof, Dust-Ignitionproof, Rain Tight; Material Aluminum/Ductile Iron (Closure for Drain), Gray Iron/Steel (Small Closure Plug), Stainless Steel (Drain), Steel (Nipple); Application Rigid, Wet Location, Ha
• Catalog Number: EYD31-TB
• Model: EYD
• Type: Drain, Hub
• Turning Radius: 2.19 Inch
• Trade Size: 1 Inch
• Material: Electrogalvanized Aluminum Acrylic Painted Gray Iron Alloy/Ductile Iron
• Mounting Position: Vertical
• Enclosure: Class I Div 1 and 2 Group A B C D, Class II Div 1 Group E F G, Class III, NEMA 3/4/7CD/9EFG
• Catalog Description: 1 INCH EYD DRAIN SEAL, BODY AND INSPECTION OR DRAIN COVER GRAY IRON AND/OR DUCTILE IRON, CLOSURE FOR DRAIN ALUMINUM, OR DUCTILE IRON, SMALL CLOSURE PLUG GRAY IRON AND/OR STEEL, DRAIN STAINLESS STEEL, REMOVABLE NIPPLES STEEL
• Category: Steel Sealing Bodies
• Full Technical Description: Drain, Hub Type; Electrogalvanized Aluminum Acrylic Painted Gray Iron Alloy/Ductile Iron Material; UL, UL 886, CSA, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 Group E F G, Class III, NEMA 3/4/7CD/9EFG Enclosure; 1 Inch Trade Size; Vertical Mounting Position; 2.19 Inch Turning Radius; Length 4.85 Inch; Constructional Feature Explosionproof, Dust-Ignitionproof, Rain Tight; Material Aluminum/Ductile Iron (Closure For Drain), Gray Iron/Steel (Small Closure Plug), Stainless Steel (Drain), Steel (Nipple); Application Rigid, Wet Location, Hazardous Location; EYD Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 786210740515
• SKU Name: t&b eyd31tb

Resources

• Manufacturer Spec Sheet
