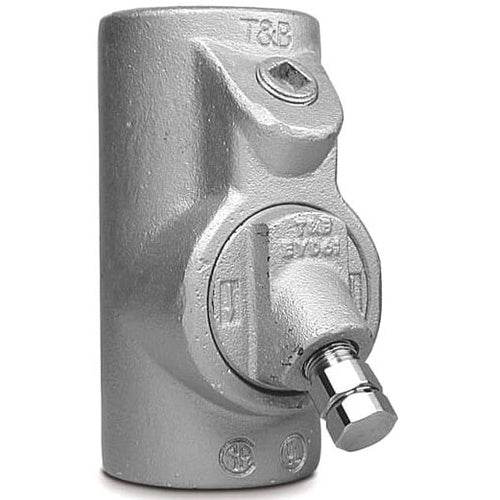

T&B EYD61-TB 2" Eyd Drain Seal, Iron, Vertical Explosion-Proof

Overview

T&B EYD61-TB 2" Eyd Drain Seal, Iron, Vertical Explosion-Proof

Product Specifications

• UPC: 78621074054
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III
• Approval: UL 886, CSA C22.2
• Additional Information: APPLICABLE STANDARD NEC, CEC
• Catalog Number: EYD61-TB
• Model: EYD
• Type: DRAIN
• Turning Radius: 2.32 INCH
• Trade Size: 2 INCH
• Connection Type: FEMALE, FEMALE
• Material: ELECTROGALVANIZED ALUMINUM ACRYLIC PAINTED GRAY IRON ALLOY/DUCTILE IRON
• Mounting Position: VERTICAL
• Catalog Description: 2 INCH EYD DRAIN SEAL, BODY AND INSPECTION OR DRAIN COVER GRAY IRON AND/OR DUCTILE IRON, CLOSURE FOR DRAIN ALUMINUM, OR DUCTILE IRON, SMALL CLOSURE PLUG GRAY IRON AND/OR STEEL, DRAIN STAINLESS STEEL, REMOVABLE NIPPLES STEEL
• Category: Steel Sealing Bodies
• Full Technical Description: Drain Type; Electrogalvanized Aluminum Acrylic Painted Gray Iron Alloy/Ductile Iron Material; Female, Female Connection Type; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 2 Inch Trade Size; Vertical Mounting Position; 2.32 Inch Turning Radius; Applicable Standard NEC, CEC; EYD Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 786210740546
• SKU Name: t&b eyd61tb

Resources

• Manufacturer Spec Sheet
