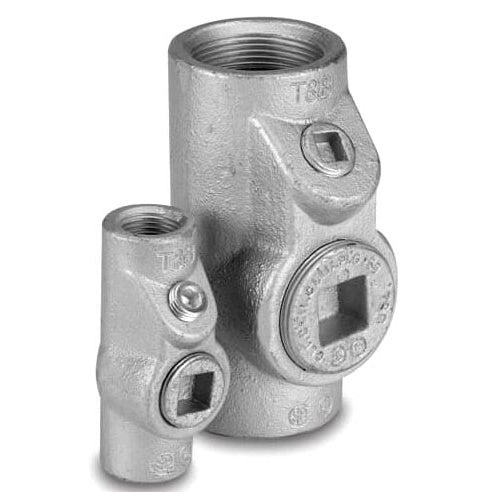

T&B EYS31-TB 1"Drain Seal, Iron, Vert/Horiz Explosion-Proof

Overview

T&B EYS31-TB 1"Drain Seal, Iron, Vert/Horiz Explosion-Proof

Product Specifications

• UPC: 78621024808
• Enclosure: Class I Div 1 and 2 Group A B C D, Class II Div 1 Group E F G, Class III
• Approval: UL 886, CSA C22.2
• Catalog Number: EYS31-TB
• Model: EYS
• Type: Hub
• Turning Radius: 1-11/32 Inch
• Trade Size: 1 Inch
• Connection Type: Female, Female
• Material: Zinc Plated Aluminum Acrylic Painted Ductile Iron
• Mounting Position: Horizontal/Vertical
• Catalog Description: 1 INCH EYS SEALING FITTING, BODY DUCTILE IRON, PLUG GRAY IRON, NIPPLE STEEL
• Category: Steel Sealing Bodies
• Full Technical Description: Hub Type; Zinc Plated Aluminum Acrylic Painted Ductile Iron Material; Female, Female Connection Type; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 Group E F G, Class III Enclosure; 1 Inch Trade Size; Horizontal/Vertical Mounting Position; 1-11/32 Inch Turning Radius; EYS Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 786210248080
• SKU Name: t&b eys31tb
