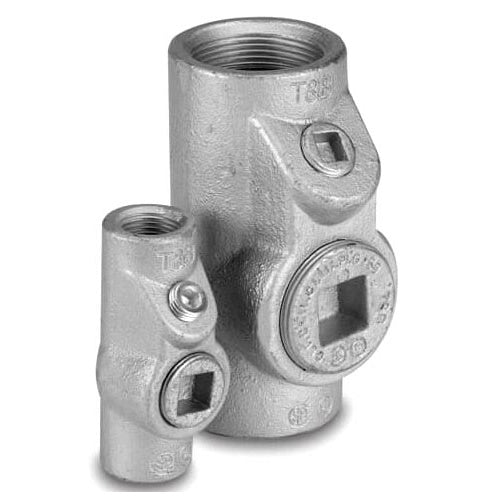

T&B EYS61-TB 2" Drain Seal, Iron, Vert/Horiz Explosion-Proof

Overview

T&B EYS61-TB 2" Drain Seal, Iron, Vert/Horiz Explosion-Proof

Product Specifications

• UPC: 78621024811
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III
• Approval: UL 886, CSA C22.2
• Catalog Number: EYS61-TB
• Model: EYS
• Type: Hub
• Turning Radius: 2-5/16 Inch
• Trade Size: 2 Inch
• Connection Type: Female, Female
• Material: Zinc Plated Aluminum Acrylic Painted Ductile Iron
• Mounting Position: Horizontal/Vertical
• Catalog Description: 2 INCH EYS SEALING FITTING, BODY DUCTILE IRON, PLUG GRAY IRON, NIPPLE STEEL
• Category: Steel Sealing Bodies
• Full Technical Description: Hub Type; Zinc Plated Aluminum Acrylic Painted Ductile Iron Material; Female, Female Connection Type; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Enclosure; 2 Inch Trade Size; Horizontal/Vertical Mounting Position; 2-5/16 Inch Turning Radius; EYS Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 786210248110
• SKU Name: t&b eys61tb

Resources

• Manufacturer Spec Sheet
