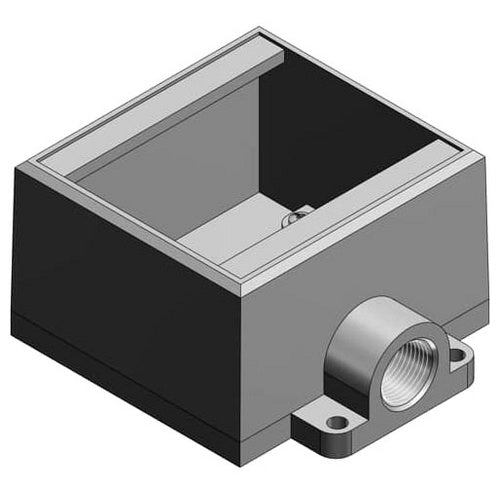

T&B FD22-TB 3/4" , 2G-Deep Box, Iron, Dead-End

Overview

T&B FD22-TB 3/4" , 2G-Deep Box, Iron, Dead-End

Product Specifications

• UPC: 78621019728
• Hub Size: 3/4 Inch
• Material: Aluminum Acrylic Painted Over Zinc Plated Iron
• Shape: Deep
• Configuration Type: FD
• Mounting Hardware: (2) Lugs
• Approval: CSA 22.2
• Catalog Number: FD22-TB
• Model: FD
• Height: 4-9/32 Inch
• Width: 4-5/8 Inch
• Depth: 2-13/16 Inch
• Number Of Gangs: 2
• Number Of Hubs: 1
• Hub Location: End
• Catalog Description: 3/4 INCH DEEP 2 GANG CAST DEVICE BOX, GRAY IRON ZINC PLATED, DEAD END, SUITABLE FOR WET LOCATIONS WHEN USED WITH GASKETED COVERS
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Aluminum Acrylic Painted Over Zinc Plated Iron Material; 4-5/8 Inch; 4-9/32 Inch; 2-13/16 Inch; Deep Shape; 3/4 Inch Hub Size; 1 Hub(S); 2 Gang(S); CSA 22.2 Approval; (2) Lugs Mounting Hardware; End Hub Location; FD Configuration Type; FD Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 786210197289
• SKU Name: t&b fd22tb

Resources

• Manufacturer Spec Sheet
