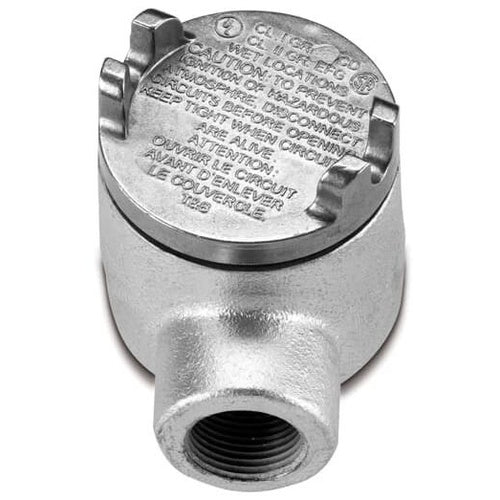

T&B GUA59-TB 1-1/2" Gua-Body/Cover, O.D.-5-3/4

Overview

T&B GUA59-TB 1-1/2" Gua-Body/Cover, O.D.-5-3/4

Product Specifications

• UPC: 78621034432
• Cover Type: EXTERNALLY THREADED
• Enclosure: NEMA 3/4/7C/7D/9E/9F/9G, CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 GROUP E F G, CLASS III DIV 1 AND 2
• Material: ALUMINUM ACRYLIC PAINTED ZINC PLATED DUCTILE IRON BODY, NATURAL FINISHED DIE CAST ALUMINUM COVER
• Approval: UL 514-A, UL 886, CSA C22.2
• Additional Information: WITH INTERNAL GROUNDING SCREW, O RING GASKET
• Catalog Number: GUA59-TB
• Model: GUA
• Hub Size: 1-1/2 INCH
• Hub Type: EXTERNAL
• Number Of Hubs: 1
• Hub Location: DEAD END
• Capacity: 70 CU INCH
• Shape: ROUND
• Catalog Description: 1-1/2 INCH GUA HAZARDOUS LOCATION CONDUIT OUTLET BOX, BOX DUCTILE IRON ZINC PLATED, COVER DIE CAST ALUMINUM, 70 CUBIC INCH
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Aluminum Acrylic Painted Zinc Plated Ductile Iron Body, Natural Finished Die Cast Aluminum Cover Material; Round Shape; 1-1/2 Inch Hub Size; 1 Hub(S); UL 514-A, UL 886, CSA C22.2 Approval; NEMA 3/4/7C/7D/9E/9F/9G, Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2 Enclosure; Externally Threaded Cover Type; 70 Cu Inch Capacity; Dead End Hub Location; External Hub Type; With Internal Grounding Screw, O Ring Gasket; GUA Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39131707
• UPC 12 Digit: 786210344324
• SKU Name: t&b gua59tb

Resources

• Manufacturer Spec Sheet
