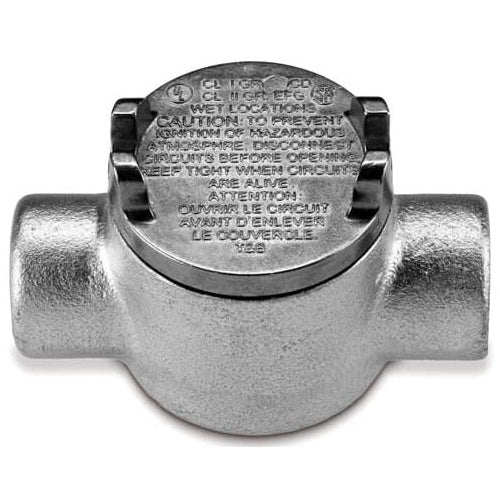

T&B GUAC16-TB 1/2" Guac-Body/Cover, O.D.-3-1/2 (Nri)

Overview

T&B GUAC16-TB 1/2" Guac-Body/Cover, O.D.-3-1/2 (Nri)

Product Specifications

• UPC: 78621034434
• Shape: ROUND
• Cover Type: EXTERNALLY THREADED
• Enclosure: NEMA 3/4/7C/7D/9E/9F/9G, CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 GROUP E F G, CLASS III DIV 1 AND 2
• Material: ALUMINUM ACRYLIC PAINTED ZINC PLATED DUCTILE IRON BODY, NATURAL FINISHED DIE CAST ALUMINUM COVER
• Approval: UL 514-A, UL 886, CSA C22.2
• Additional Information: WITH INTERNAL GROUNDING SCREW, O RING GASKET
• Catalog Number: GUAC16-TB
• Model: GUA
• Style: C
• Hub Size: 1/2 INCH
• Hub Type: EXTERNAL
• Number Of Hubs: 2
• Hub Location: FEED THROUGH
• Capacity: 13.1 CU INCH
• Catalog Description: 1/2 INCH GUAC HAZARDOUS LOCATION CONDUIT OUTLET BOX, BOX DUCTILE IRON ZINC PLATED, COVER DIE CAST ALUMINUM, 13.1 CUBIC INCH
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Aluminum Acrylic Painted Zinc Plated Ductile Iron Body, Natural Finished Die Cast Aluminum Cover Material; Round Shape; 1/2 Inch Hub Size; 2 Hub(S); UL 514-A, UL 886, CSA C22.2 Approval; NEMA 3/4/7C/7D/9E/9F/9G, Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2 Enclosure; Externally Threaded Cover Type; 13.1 Cu Inch Capacity; C Style; Feed Through Hub Location; External Hub Type; With Internal Grounding Screw, O Ring Gasket; GUA Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39131708
• UPC 12 Digit: 786210344348
• SKU Name: t&b guac16tb

Resources

• Manufacturer Spec Sheet
