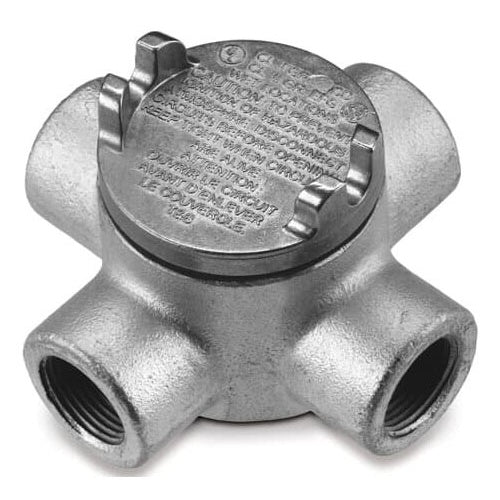

T&B GUAX24-TB 3/4" Guax-Body/Cover, O.D.- 2-1/2"

Overview

T&B GUAX24-TB 3/4" Guax-Body/Cover, O.D.- 2-1/2"

Product Specifications

• UPC: 78621098180
• Shape: Round
• Cover Type: Externally Threaded
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G
• Material: Aluminum Acrylic Painted Zinc Plated Ductile Iron (Body), Natural Finished Die-Cast Aluminum (Cover)
• Approval: UL 514A/886, CSA C22.2
• Additional Information: Includes Internal Grounding Screw, O-Ring Gasket
• Catalog Number: GUAX24-TB
• Model: GUAX
• Style: X
• Hub Size: 3/4 Inch
• Hub Type: External
• Number Of Hubs: 4
• Hub Location: (4) Side
• Capacity: 5.3 Cu Inch
• Catalog Description: 3/4 INCH GUAX HAZARDOUS LOCATION CONDUIT OUTLET BOX, BOX DUCTILE IRON ZINC PLATED, COVER DIE CAST ALUMINUM, 5.3 CUBIC INCH
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Aluminum Acrylic Painted Zinc Plated Ductile Iron (Body), Natural Finished Die-Cast Aluminum (Cover) Material; Round Shape; 3/4 Inch Hub Size; 4 Hub(S); UL 514A/886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G Enclosure; Externally Threaded Cover Type; 5.3 Cu Inch Capacity; X Style; (4) Side Hub Location; External Hub Type; Includes Internal Grounding Screw, O-ring Gasket; GUAX Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39131708
• UPC 12 Digit: 786210981802
• SKU Name: t&b guax24tb
